Boeing RAH-66 Comanche Number built 2
Status Cancelled in 2004 by U.S. Army
First flight 4 January 1996

The Boeing–Sikorsky RAH-66 Comanche is an American stealth armed reconnaissance and attack helicopter designed for the United States Army. Following decades of study and development, the RAH-66 program was cancelled in 2004 before mass production began, by which point nearly US$7 billion had been spent on the program.

Prototype testing

The flight test program was conducted using the pair of prototypes produced, which had been assigned the serial numbers 94-0327 and 95-0001. Following a demonstration of its ability to meet certain key criteria, on 1 June 2000, the RAH-66 entered the $3.1 billion engineering and manufacturing development (EMD) phase of the program. Through the early 2000s, the U.S. Army maintained its plans for the intended purchase of over 1,200 Comanches, which were to fill both the scout helicopter and light attack roles; as late as 2003, it was being anticipated that deliveries of operational RAH-66s would commence as scheduled during 2006

Design

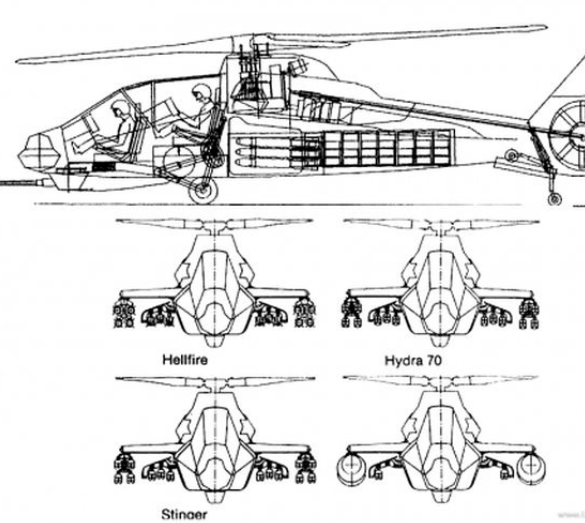

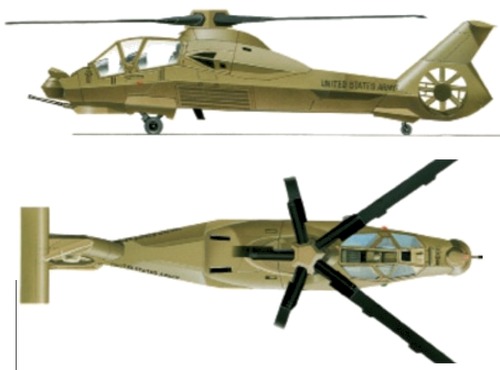

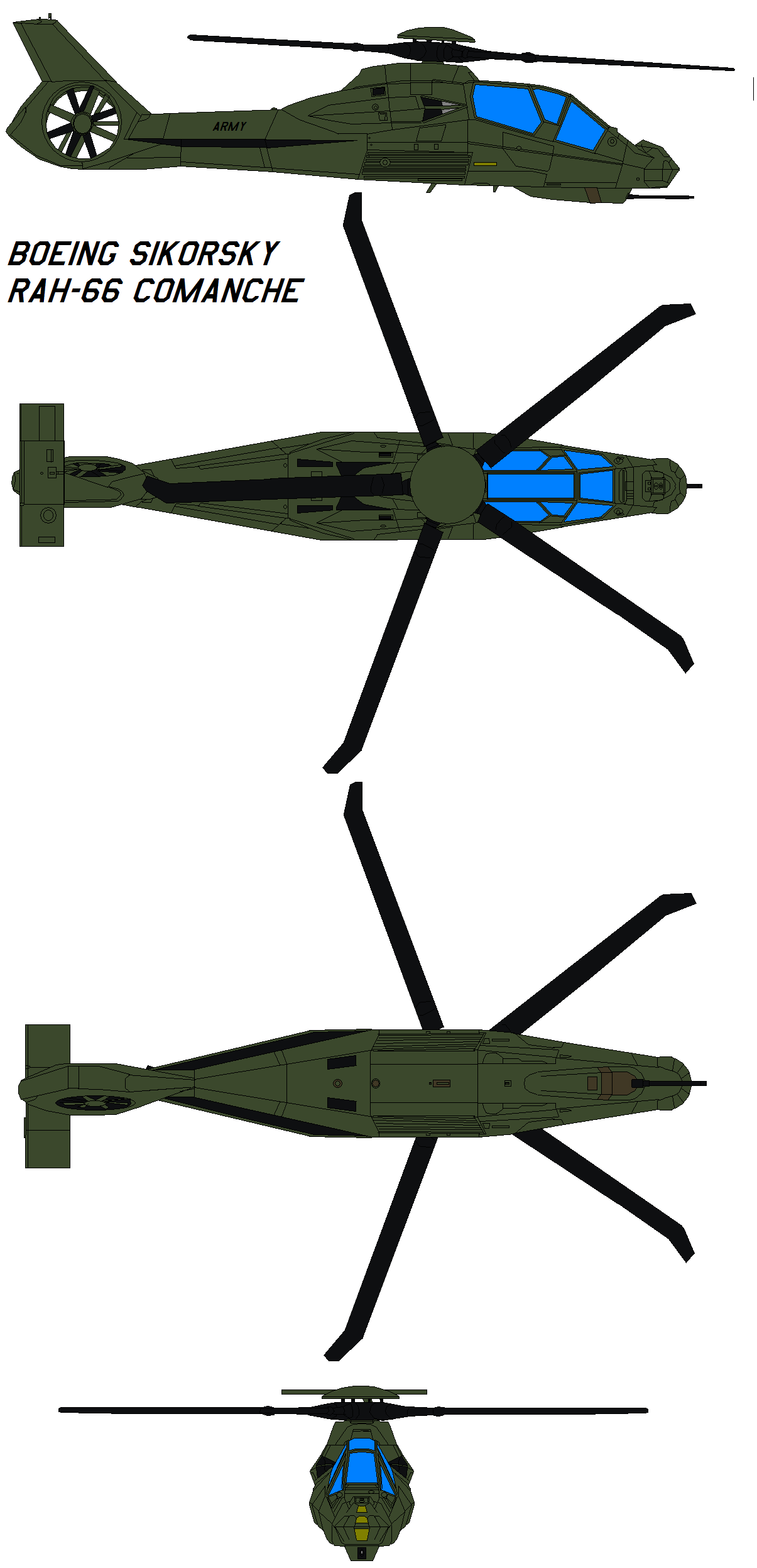

The Comanche was intended to be an advanced armed reconnaissance and attack helicopter. The Comanche was specifically tailored to the role of armed scout to replace the U.S. Army's OH-58D Kiowa Warrior , which is an upgraded version of a Vietnam War -era observation helicopter. It was both smaller and lighter than the AH-64 Apache attack helicopter that it had been intended to accompany. The RAH-66 was powered by a pair of LHTEC T800 turboshaft engines, each capable of generating up to 1,563 hp (1,165 kW) of power. The RAH-66's fuselage was 43 feet (13 m) long and composed of composite materials ; it was designed to be capable of fitting more readily onto transport ships, enabling the Comanche to be more rapidly deployed to flash points and other rapidly developing situations. However, in the event of strategic transport assets not being available, the helicopter's ferry range of 1,200 nmi (2,200 km) would have allowed it to fly itself to battlefields overseas on its own.^[.Wiki Link
