Douglas Aerospace
Douglas A-3 Skywarrior
Manufactured 1956–1961
First flight 28 October 1952

The Douglas A-3 Skywarrior is a jet-powered strategic bomber that was developed and produced by the Douglas Aircraft Company. It was designed by Douglas on behalf of the United States Navy, which sought a carrier-capable strategic bomber. In July 1949, Douglas was awarded the contract to produce its design, having bested eight other aircraft companies' submissions. Unlike rival designs, which had aimed for a 100,000 lb (45,000 kg) maximum take-off weight, the Skywarrior was developed for a 68,000 lb (31,000 kg) take-off weight, facilitating its use from the navy's existing Midway-class aircraft carriers. Large portions of the aircraft were produced by the Westinghouse Electric Corporation, including its early Westinghouse J40 turbojet engines, which failed to meet promises and were replaced by the rival Pratt & Whitney J57 engine by mid-1953. On 28 October 1952, the prototype XA3D-1 performed the type's maiden flight.

Design

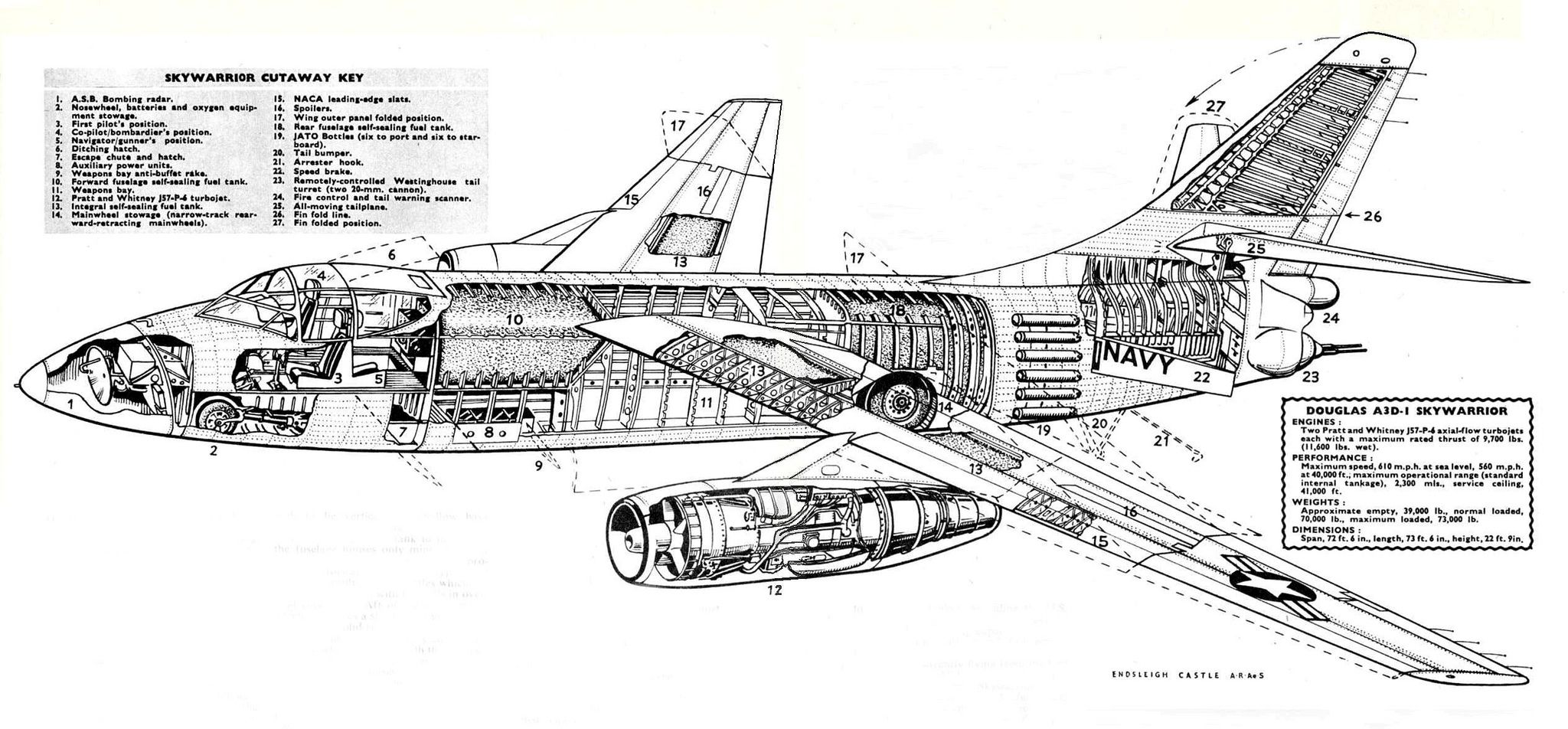

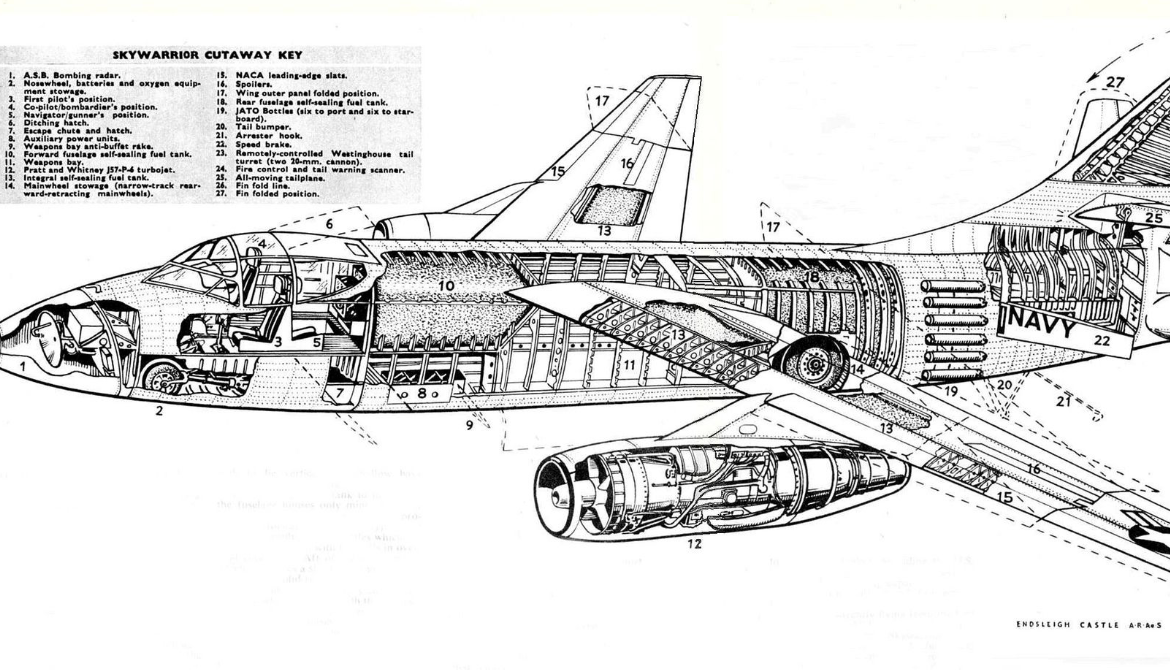

The Skywarrior had a 36° degree swept wing and two Pratt & Whitney J57 turbojet engines. Early prototypes had used the intended Westinghouse J40, a powerplant that proved to be disastrous and was subsequently canceled. The turbojets could be supplemented by a provision for twelve 4,500 lbf (20 kN) thrust JATO bottles. The aircraft had a largely conventional semi-monocoque fuselage, with the engines in underwing nacelles. Flight controls were hydraulic, and for storage below deck, the A-3's wings folded outboard of the engines, lying almost flat, and its vertical stabilizer was hinged to starboard. Capacious internal fuel tanks provided long range.

Variants

• XA3D-1: Two prototypes with Westinghouse J40 turbojets, no cannon in tail turret.
• YA3D-1 (YA-3A): One pre-production prototype with Pratt & Whitney J57 engines. Later used for tests at the Pacific Missile Test Center.
• A3D-1 (A-3A): 49 initial production versions, serving largely in developmental role in carrier service.
• A3D-1P (RA-3A): One A3D-1 converted as a prototype for the A3D-2P with camera pack in the weapon bay.
• A3D-1Q (EA-3A): Five A3D-1s converted for the electronic reconnaissance (ELINT) role, with ECM equipment and four operators in weapons bay.
• A3D-2 (A-3B): Definitive production bomber version, with stronger airframe, more powerful engines, slightly larger wing area (812 ft²/75 m² versus 779 ft²/72 m²), provision for in-flight refueling reel for tanker role. Final 21 built had new AN/ASB-7 bombing system, reshaped nose; deleted tail turret in favor of electronic warfare installation.
