Junkers Flugzeug- und Motorenwerke AG JFM
Junkers A50 Junior
Junkers
Junkers A50 Junior
Role Sports plane
Manufacturer Junkers
Designer Hermann Pohlmann
First flight February 13, 1929
Number built 69 (original
production)
27
new production, May 2023
.
History Junkers Flugzeug- und Motorenwerke AG JFM
Junkers A50 Junior

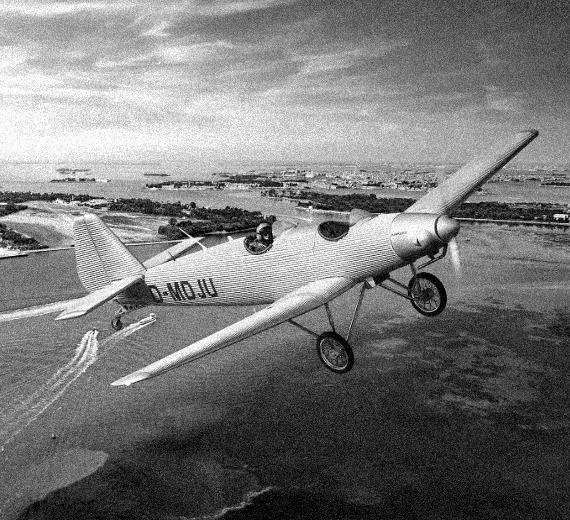

The Junkers A50 Junior was a German sports plane of the 1930s. The Junkers A50 was the first sportsplane designed by Hermann Pohlmann in Junkers works.[1] It had the same modern all-metal construction, covered with corrugated duralumin sheet, as larger Junkers passenger planes. The first flight of the A50 took place on 13 February 1929. It was followed by further four prototypes, in order to test different engines.
Three German A50 took part in the Challenge international touring plane competition in July 1929, taking 11th place (A50be, pilot Waldemar Roeder) and 17th place. Three A50 took part also in the Challenge 1930 next year, taking 15th (A50ce, pilot Johann Risztics), 27th and 29th places. In June 1930 a series of eight FAI world records for altitude, range and average speed were set on a floatplane variant of A50 with the Armstrong Siddeley 59 kW (79 hp) engine. In 1931 Marga von Etzdorf flew an A50 solo from Berlin to Tokyo, the first woman to do so.
Design
Metal construction sports plane, conventional in layout, with low cantilever wings, stressed corrugated duralumin covered. Two-spar wings were folding rearwards or could be detached. Crew of two, sitting in tandem in separate open cockpits (if it flew without a passenger, one cockpit could be closed with a cover). Two-blade propeller. Conventional fixed split axle mainwheel landing gear, with a rear skid.
New production
.jpg)

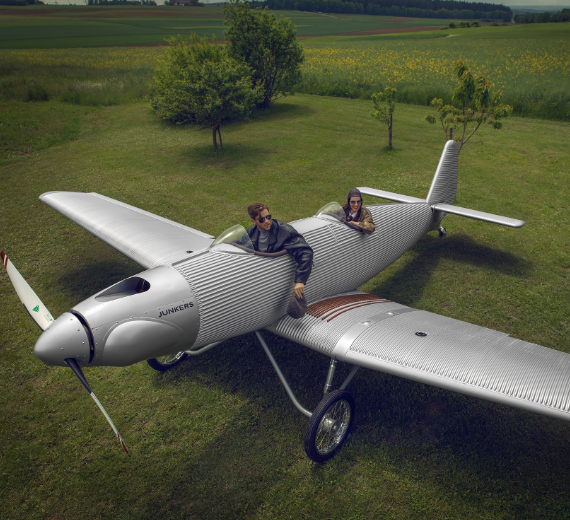

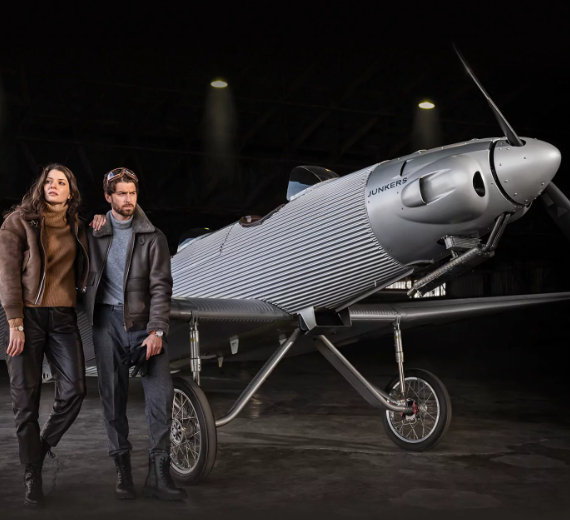

In 2022, Junkers Aircraft Works began production of a modernized version of the A50. This new A50 features modern avionics, a 100 hp Rotax 912iS engine driving a composite MT-Propeller, and a ballistic parachute. As of May 2023, 27 new A50s have sold in Europe, and plans have been made for WACO Aircraft Corporation to produce aircraft for American customers.[
0
KmCeiling
0
KmCombat RANGE
0
Km/hAircraft Speed
0
Max Crew

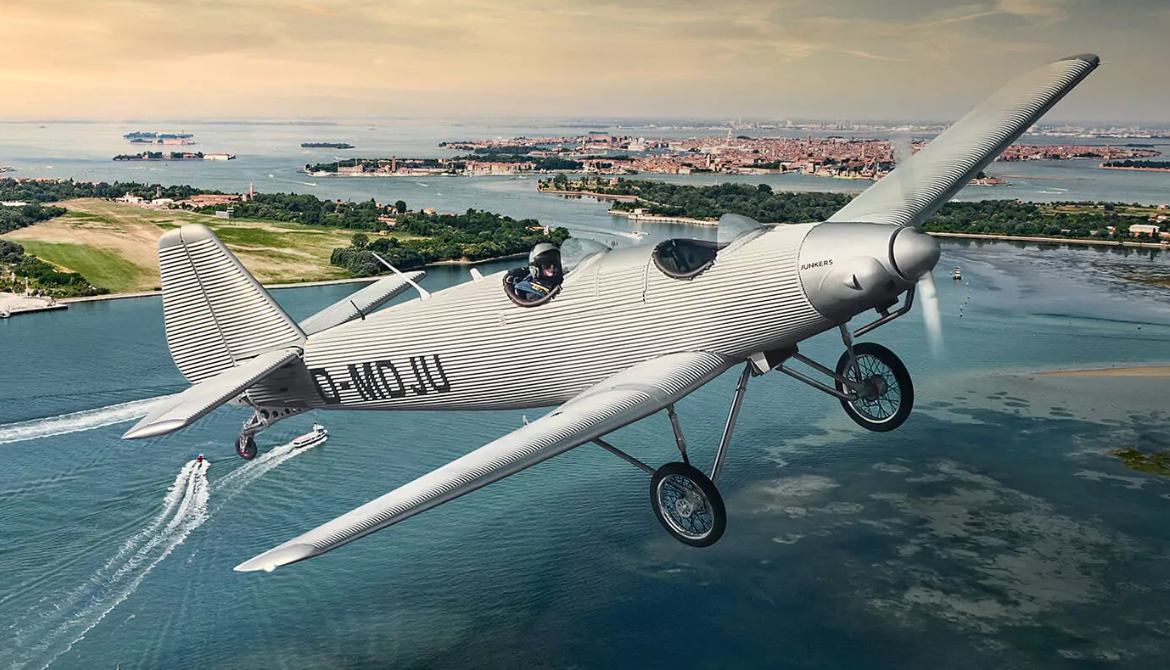

Photo Gallery
Junkers Flugzeug- und Motorenwerke AG JFM
Junkers A50 Junior
Junkers Flugzeug- und Motorenwerke AG JFM
Junkers A50 Junior
General Info
-
-
- Length: 7.12 m (23 ft 4 in)
- Wingspan: 10 m (32 ft 10 in)
- Height: 2.39 m (7 ft 10 in)
- Wing area: 13.7 m2 (147 sq ft)
-
Powerplant
-
- Empty weight: 340 kg (750 lb)
- Gross weight: 590 kg (1,301 lb)
- Fuel capacity: 95 L
- Powerplant: 1 × Armstrong Siddeley Genet II 5-cylinder air-cooled radial piston engine, 65 kW (87 hp)
- Propellers: 2-bladed fixed-pitch propeller
-
Performance
- Maximum speed: 265.5 km/h (165.0 mph, 143.4 kn) at sea level
-
-
- 276.8 km/h (172.0 mph; 149.5 kn) at 910 m (3,000 ft)
-
- Cruise speed: 246 km/h (153 mph, 133 kn) maximum continuous at 910 m (3,000 ft)
-
-
- 209 km/h (130 mph; 113 kn) economical cruise
-
- Range: 998 km (620 mi, 539 nmi)
- Service ceiling: 5,900 m (19,360 ft)
.
Links to Youtube & Others
Junkers expected to produce 5,000 aircraft, but stopped after manufacturing only 69, of which only 50 were sold. The high prices probably inhibited sales. Apart from Germany, they were used in several other countries and some were used by airlines. The purchase price in 1930 in the United Kingdom was between £840 and £885. Starting from the A50ce variant, the wings could be folded for easier transport.
Youtube Link
In 2022, Junkers Aircraft Works began production of a modernized version of the A50. This new A50 features modern avionics, a 100 hp Rotax 912iS engine.
