Polikarpov Po-2
Kukuruznik "Mule"

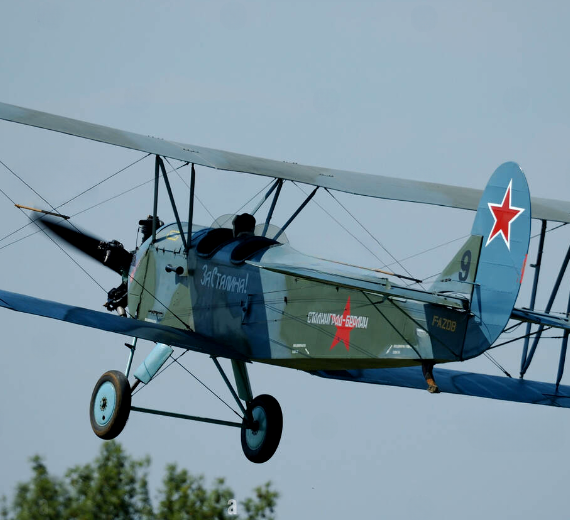

1944 Polikarpov Po-2 of The Shuttleworth Collection, United Kingdom
Role Utility biplane
Manufacturer Polikarpov
First flight 24 June 1927
Introduction 1929
Primary users Soviet Air Force
Aeroflot
DOSAAF
Produced 1928-1959
Number built 20,000–30,000
.
History Polikarpov Design Bureau (design bureau)
Polikarpov Po-2 Kukuruznik NATO reporting name "Mule"



The Polikarpov Po-2 (also U-2, for its initial uchebnyy, 'training', role as a flight instruction aircraft) served as an all-weather multirole Soviet biplane, nicknamed Kukuruznik (Russian: Кукурузник, NATO reporting name "Mule"). The reliable, uncomplicated design of the Po-2 made it an ideal trainer aircraft, as well as doubling as a low-cost ground attack, aerial reconnaissance, psychological warfare and liaison aircraft during war, proving to be one of the most versatile light combat types to be built in the Soviet Union. As of 1978 it remained in production for a longer period of time than any other Soviet-era aircraft

Design and development

The aircraft was designed by Nikolai Polikarpov to replace the U-1 trainer (a copy of the British Avro 504), which was known as Avrushka to the Soviets.

The prototype of the U-2, powered by a 74 kW (99 hp) Shvetsov M-11 air-cooled five-cylinder radial engine, first flew on 7 January 1928 piloted by M.M. Gromov. Aircraft from the preproduction series were tested at the end of 1928 and serial production started in 1929 in Factory number 23 in Leningrad. Its name was changed to Po-2 in 1944, after Polikarpov's death, according to the then-new Soviet naming system, usually using the first two letters of the designer's family name, or the Soviet government-established design bureau that created it. Production in the Soviet Union ended in 1953, but license-built CSS-13s were still produced in Poland until 1959.

A Po-2 at a museum in Dresden, Germany

Operational history

Damaged and abandoned Po-2 forced to land in Ukraine, and subsequently captured by German troops, 1941.

From the beginning, the U-2 became the basic Soviet civil and military trainer aircraft, mass-produced in a "Red Flyer" factory near Moscow. It was also used for transport, and as a military liaison aircraft, due to its STOL capabilities. Also from the beginning it was produced as an agricultural aircraft variant, which earned it its nickname Kukuruznik. Although entirely outclassed by contemporary aircraft, the Kukuruznik served extensively on the Eastern Front in World War II, primarily as a liaison, medevac and general-supply aircraft. It was especially useful for supplying Soviet partisans behind the German front line. Manufacturing of the Po-2 in the USSR ceased in 1949, but until 1959 a number were assembled in Aeroflot repair workshops.



0

Km

Ceiling

0

Km

Combat RANGE

0

Km/h

Aircraft Speed

0

Max Crew

element
element
>Polikarpov Design Bureau (design bureau)

Polikarpov Design Bureau (design bureau)
Polikarpov Po-2 Kukuruznik NATO reporting name "Mule"

1

General Info

        • Crew: 2
        • Length: 8.17 m (26 ft 10 in)
        • Wingspan: 11.4 m (37 ft 5 in)
        • Height: 3.1 m (10 ft 2 in)
2

Powerplant


        • Empty weight: 770 kg
        • Gross weight: 1,030 kg
        • Max takeoff weight: 1,350 kg
        • Powerplant: 1 × Shvetsov M-11D 5-cylinder air-cooled radial piston engine, 93 kW (125 hp)
plane
3

Performance

  • Maximum speed: 152 km/h
  • Cruise speed: 110 km/h
  • Range: 630 km (390 mi, 340 nmi)
  • Service ceiling: 3,000 m
4

Armament

.
Special Links Polikarpov Design Bureau (design bureau) Polikarpov Polikarpov Po-2 Kukuruznik NATO reporting name "Mule"

Links to Youtube & Others

From the beginning, the U-2 became the basic Soviet civil and military trainer aircraft, mass-produced in a "Red Flyer" factory near Moscow. It was also used for transport, and as a military liaison aircraft, due to its STOL capabilities. Also from the beginning it was produced as an agricultural aircraft variant, which earned it its nickname Kukuruznik. Although entirely outclassed by contemporary aircraft, the Kukuruznik served extensively on the Eastern Front in World War II.

Polikarpov Po-2 Kukuruznik "Mule"

The aircraft was designed by Nikolai Polikarpov to replace the U-1 trainer (a copy of the British Avro 504), which was known as Avrushka to the Soviets.

interior

Youtube Link

The Polish Air Force used these slow and manoeuvrable aircraft for air reconnaissance and COIN operations against UPA detachments in mountainous area of Bieszczady.
