Myasishchev VM-T Atlant "Atlas"
|
|||||||||||||||||||||||||
|
|
.
History V. M. Myasishchev Experimental Design Bureau
Myasishchev VM-T Atlant "Atlas"
The Myasishchev VM-T Atlant (Russian: Мясищев ВМ-Т «Атлант» ("Atlas"), with the "VM-T" ("BM-T") standing for Vladimir Myasishchev – Transport) was a variant of Myasishchev's M-4 Molot bomber (the "3M"), re-purposed as a strategic-airlift airplane. The VM-T was modified to carry rocket boosters and the Soviet space shuttles of the Buran program. It is also known as the 3M-T.
Design and development

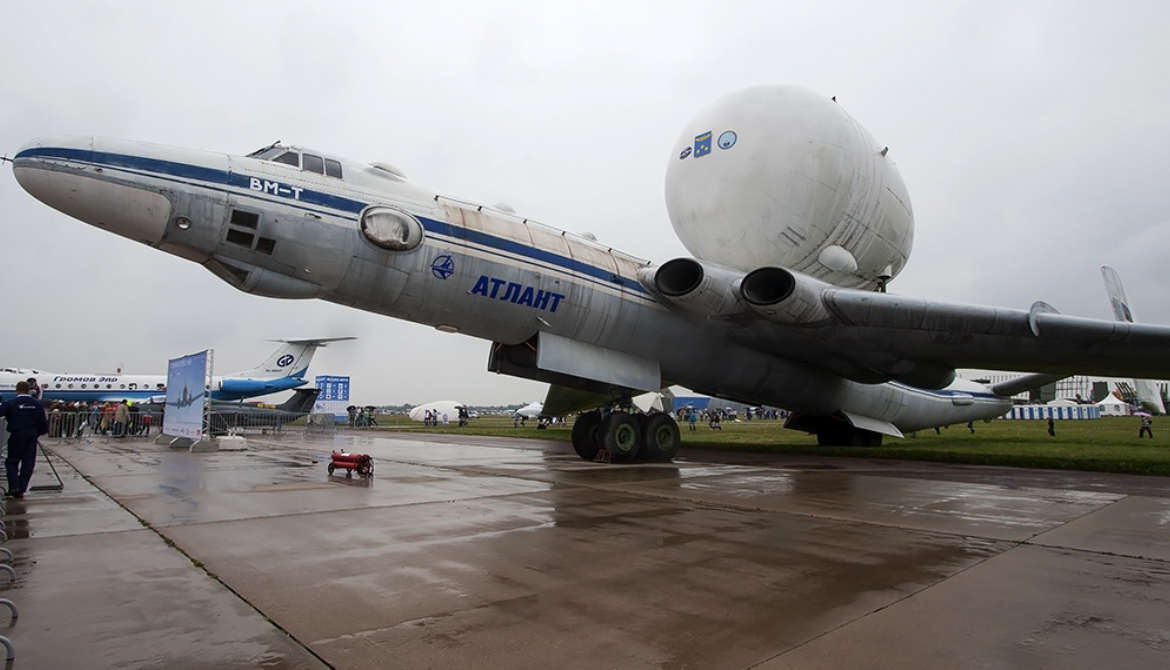

The design was conceived in 1978 when Myasishchev was asked to solve the problem of transporting rockets and other large space vehicles to the Baikonur Cosmodrome. Engineers used an old 3M (a modified M-4 bomber) and replaced the empennage with dihedralled horizontal stabilizers with large, rectangular end-plate tailfins to accommodate payloads measuring as large as twice the diameter of the aircraft's fuselage. A large, aerodynamically optimized cargo container, placed on top of the aircraft, would contain the freight. In addition, a new control system was added to the plane to compensate for the added weight.

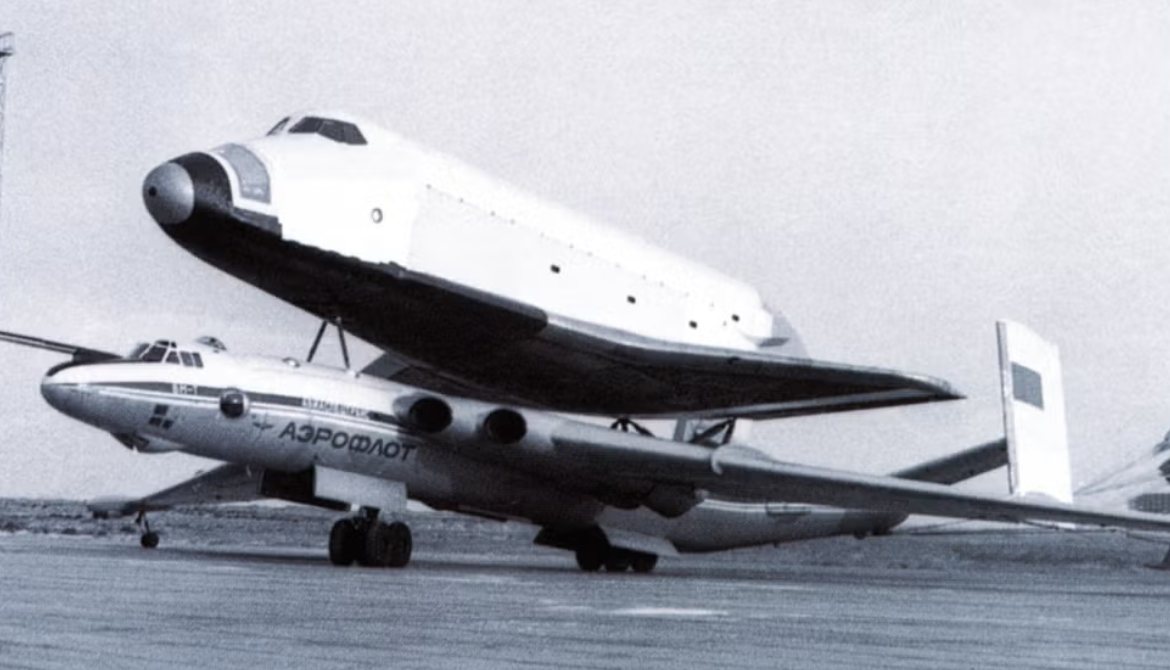

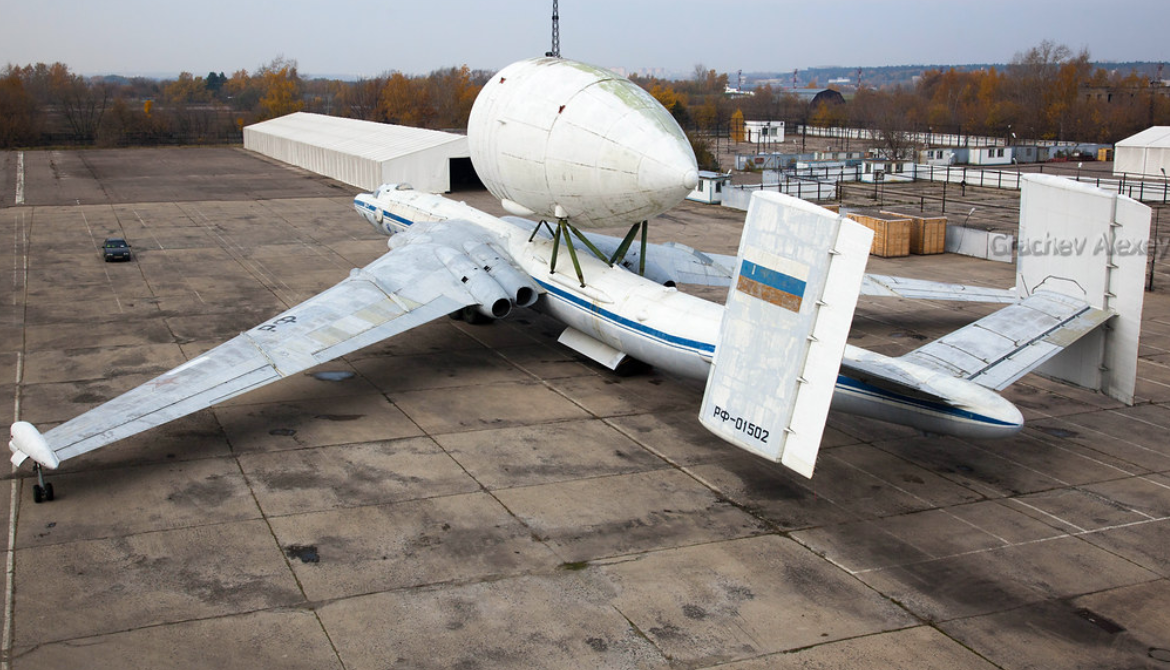

- Two Atlants were built. They were replaced in 1989 by Antonov's An-225 Mriya. One Atlant (RF-01502) is kept at the Zhukovsky International Airport in Russia owned by TsAGI and Gromov Flight Research Institute, the other one (RA-01402) at Dyagilevo (air base) in Ryazan. 0GT was the Buran spaceplane without tailplane and equipment, 1GT was the hydrogen tank of the Energia rocket, 2GT was the engine frame and front aerodynamic cover of Energia and 3GT was the oxygen tank of Energia. All configurations were equipped with aerodynamic cover to decrease the drag.
0
KmCeiling
0
KmCombat RANGE
0
Km/hAircraft Speed
0
Max Crew
Photo Gallery
V. M. Myasishchev Experimental Design Bureau
Myasishchev VM-T Atlant "Atlas"
V. M. Myasishchev Experimental Design Bureau
Myasishchev VM-T Atlant "Atlas"
General Info
-
-
- Crew: 6
- Capacity:
-
- 0GT payload container 45,300 kg (99,869 lb) - (38.45 m (126 ft) long, 23.8 m (78 ft) Buran wingspan)
- 1GT payload container 31,500 kg (69,446 lb) - (44.46 m (146 ft) long, 7.78 m (26 ft) diameter)
- 2GT payload container 30,000 kg (66,139 lb) - (26.41 m (87 ft) long, 7.75 m (25 ft) diameter)
- 3GT payload container 15,000 kg (33,069 lb) - (16.67 m (55 ft) long, 7.75 m (25 ft) diameter)
- Length: 51.23 m (168 ft 1 in)
- Wingspan: 53.14 m (174 ft 4 in)
-
Powerplant
-
-
- Powerplant: 4 × RKBM/Koliesov / Dobrynin VD-7MD turbojet engines, 105.45 kN (23,710 lbf) thrust each
-
Performance
- Cruise speed: 580 km/h
- Never exceed speed: 970 km/h
- Range: 3,565 km (2,215 mi, 1,925 nmi)
- Service ceiling: 10,200 m
- Thrust/weight: 0.224 (at MTOW)
- Take-off run: 3,500 m
.
Links to Youtube & Others
The Atlant first flew in 1981 and made its first flight with cargo in January 1982.[1] Its main task was to ferry Energia rocket boosters from their development plant to the Baikonur Cosmodrome.
