AIDS Aviation Inc.

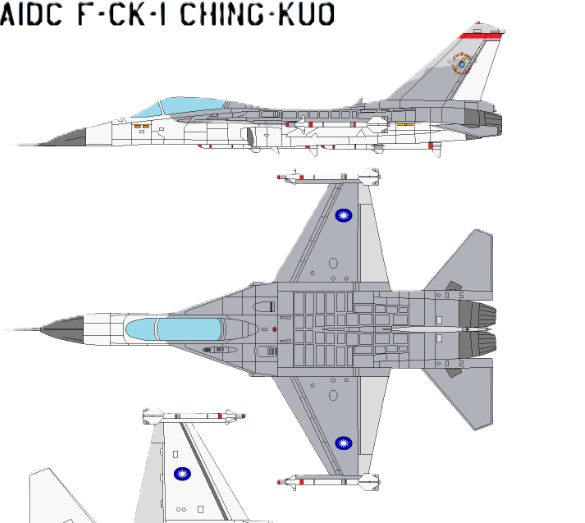

AIDC F-CK-1 Ching-Kuo

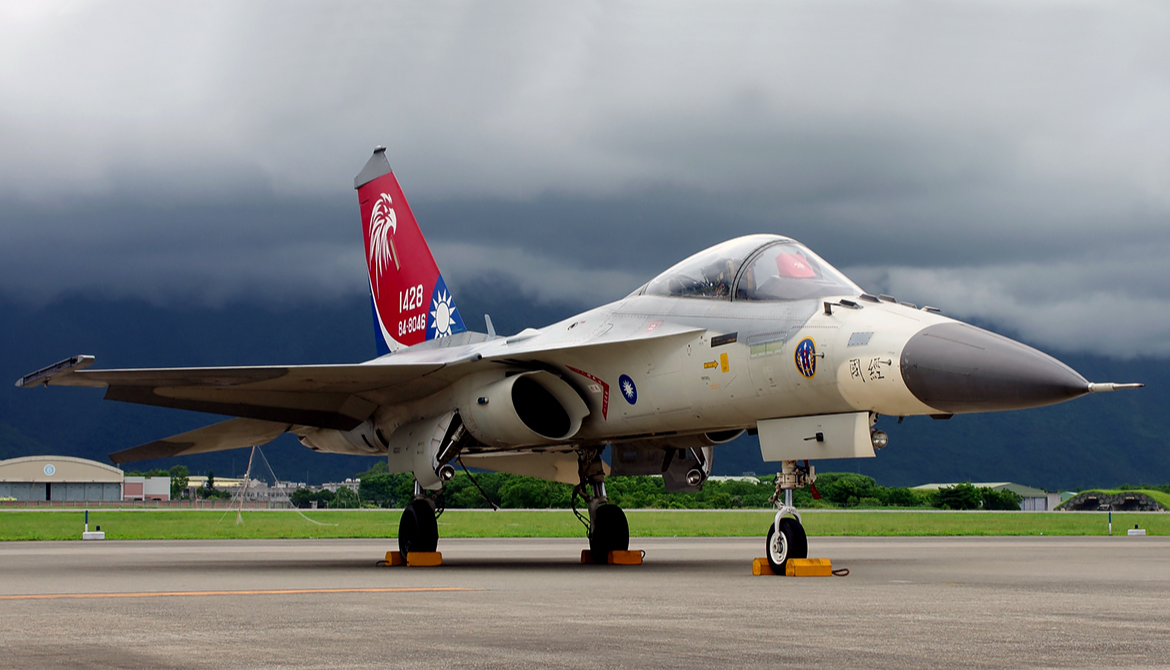

An ROCAF F-CK-1A on approach
Role Multirole fighter
National origin Taiwan
Manufacturer Aerospace Industrial Development Corporation
First flight May 28, 1989
Introduction 1992
Status In service
Primary user Republic of China Air Force
Produced 1990–2000 (A/B models)
Number built 137 (6 Prototypes and 131 serials)

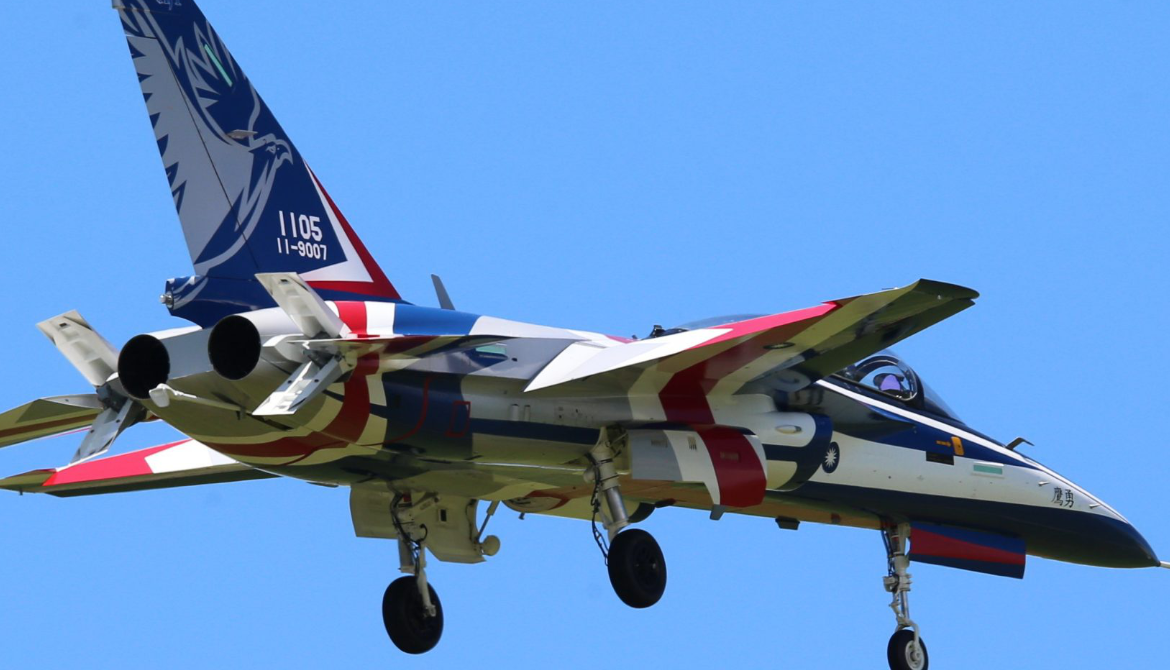

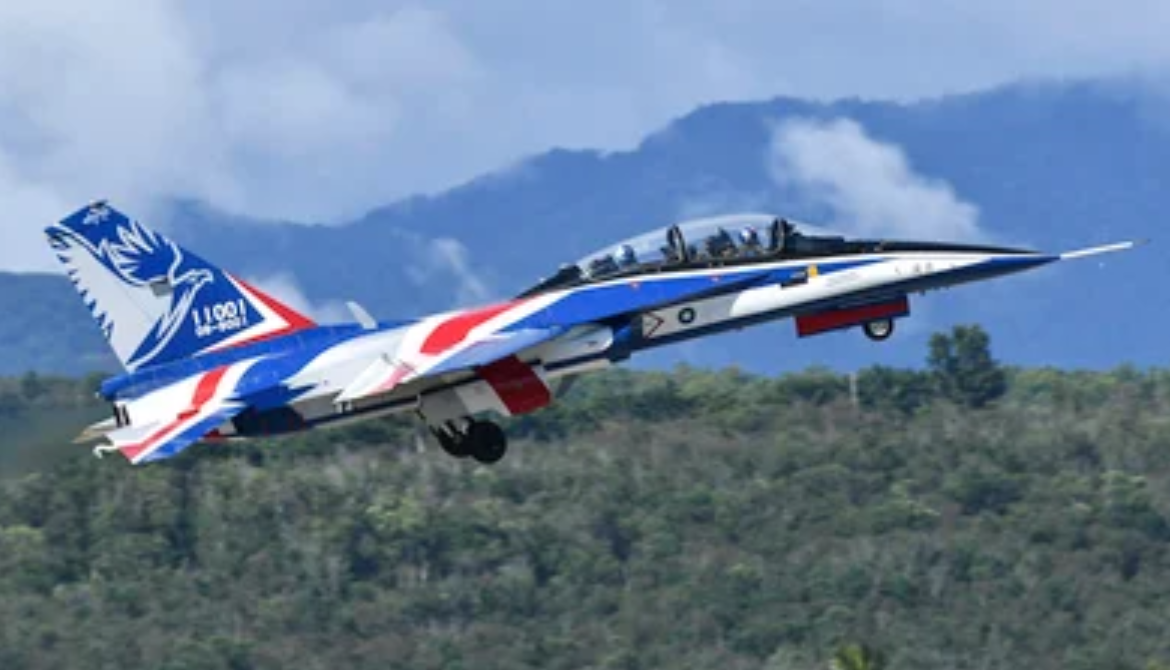

Developed into AIDC T-5
.
History AIDC F-CK-1 Ching-Kuo (Chinese: 經國號戰機; pinyin: Jīngguó Hào Zhànjī),
commonly known as the Indigenous Defense Fighter (IDF),

Design phase

Pre-production F-CK-1A model

The AIDC officially began the IDF development project in May 1982 following the ROCAF's failure to purchase new fighters from the United States as a result of Chinese diplomatic pressure. The project, led by Hsi-Chun Mike Hua, later known as the father of the Indigenous Defense Fighter, was named An-Hsiang (安翔, Safe Flight) and divided into four sections in 1983:

In April 1997 American company Litton's Applied Technology division was awarded a production contract and options totaling $116.2 million by the Aerospace Industrial Development Corporation for Improved Radar Warning Receivers (IRWR) to be installed aboard.

. Wiki Link

0

th

Generation

0

nmi

MAX RANGE

0

Mach

Aircraft Speed

0

Max Crew

element
element
British Aircraft company

AIDC F-CK-1 Ching-Kuo (Chinese: 經國號戰機; pinyin: Jīngguó Hào Zhànjī), commonly known as the Indigenous Defense Fighter (IDF),

1

General Info

  • Crew: 1
  • Length: 14.21 m (46 ft 7 in)
  • Wingspan: 9 m (29 ft 6 in)
  • Height: 4.42 m (14 ft 6 in)
  • Wing area: 24.2 m2 (260 sq ft)
2

Powerplant

  • Empty weight: 6,486 kg (14,299 lb)
  • Gross weight: 9,072 kg (20,000 lb)
  • Max takeoff weight: 12,247 kg (27,000 lb)
  • Powerplant: 2 × Honeywell/ITEC F125-GA-100 turbofan, 27 kN (6,100 lbf) thrust each dry, 42.1 kN (9,500 lbf) with afterburner
plane
3

Performance

  • Maximum speed: Mach 1.8 (1379mph, 2,220 km/h)
  • Range: 1,100 km (680 mi, 590 nmi) with min. three external 1,040 L fuel tanks
  • Service ceiling: 16,800 m (55,100 ft)
  • Thrust/weight: 0.946(clean)/0.701(maximum load)
4

Combat Operations

.
Special Links AIDC F-CK-1 Ching-Kuo

Links to Youtube & Others

The Republic of China Air Force (ROCAF; known historically as the Chinese Air Force[4] and colloquially as the Taiwanese Air Force) is the military aviation branch of the Republic of China Armed Forces, based in Taiwan since 1947.

AIDC F-CK-1 Ching-Kuo

Four["Full Scale Development" units were produced; three single-seaters followed by a two-seater. The first successful test flight by single-seater FSD A1 was made on May 28, 1989

interior

Youtube Link

The IDF is equipped with a GD-53 Golden Dragon multi-mode monopulse pulse-Doppler radar, which is based on the General Electric AN/APG-67 X band

interior
Aircrafttotal : Aircraft

Read more in AIDC F-CK-1 Ching-Kuo  Indigenous Defense Fighter (IDF)

.
