Nudelman-Rikhter NR-23 (Нудельман и Рихтер НР-23) is a Soviet autocannon widely used in military aircraft
Nudelman-Rikhter NR-23 Нудельман и Рихтер
|
|||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.
History Nudelman-Rikhter NR-23 (Нудельман и Рихтер НР-23)
is a Soviet autocannon widely used in military aircraft of the
Soviet Union and Warsaw Pact.
The Nudelman-Rikhter NR-23 (Нудельман и Рихтер НР-23) is a Soviet autocannon widely used in military aircraft of the Soviet Union and Warsaw Pact. It was designed by A. E. Nudelman and A. A. Richter to replace the wartime Nudelman-Suranov NS-23 and Volkov-Yartsev VYa-23, entering service in 1949.

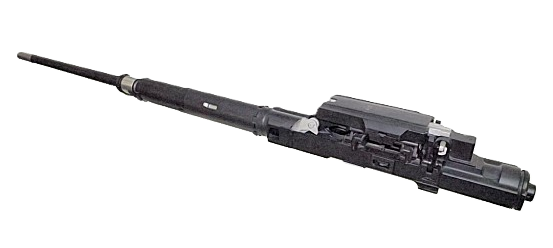

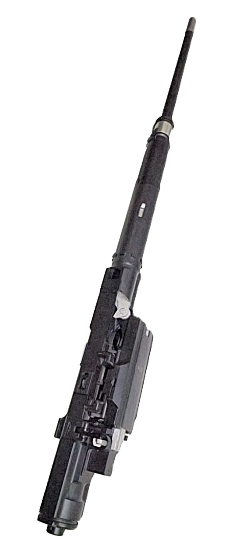

The NR-23 is a single-barrel, short recoil-operated 23 mm (0.90 in) cannon. It was similar to the NS-23 but mechanical improvements increased its rate of fire by more than 50%. Its theoretical rate of fire was 850 rounds per minute, although United States Air Force tests of captured weapons achieved an actual rate of fire of only 650 rounds per minute.
Applications

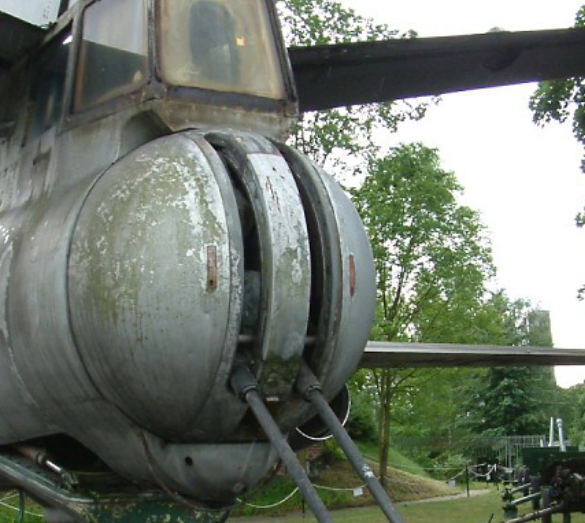

The NR-23 was used on fighter aircraft, including the MiG-15, Lavochkin La-15, MiG-17, and some models of the MiG-19. In addition, it was also used on the Ilyushin Il-28 and Beriev Be-6. The AM-23 was used in the defensive turrets of the Antonov An-12B, Myasishchev M-4, Tupolev Tu-14, Tupolev Tu-16, Tupolev Tu-95/Tu-142, and the Tupolev Tu-98 prototype.
In the mid-1960s the cannon was replaced in Soviet service by the twin-barrel Gryazev-Shipunov GSh-23L.
The NR-23 was later replaced by the Afanasev Makarov AM-23 automatic cannon which had a higher firing rate. The AM-23 was used in turreted installations for bombers. It was a gas-operated weapon, weighed 43 kg (95 lb) and was capable of a substantially higher rate of fire (1,200–1,300 rounds per minute).
The People's Republic of China manufactures copies of both versions of this weapon as Norinco Type 23-1 (NR-23) and Type 23-2 (AM-23), respectively.
Kg
Weapon weight
rounds/min
Rate of Fire
Length
Weapon Lenght
Introduction
Introduction
Photo Gallery
Nudelman-Rikhter NR-23 (Нудельман и Рихтер НР-23)
is a Soviet autocannon widely used in military aircraft of the
Soviet Union and Warsaw Pact
Nudelman-Rikhter NR-23 (Нудельман и Рихтер НР-23) is a Soviet autocannon widely used in military aircraft of the Soviet Union and Warsaw Pact.
-
-
-
-
Nudelman-Rikhter NR-23 Soviet autocannon
Specifications Mass 39 kg (86 lb) Length 1,980 mm (6 ft 6 in) Barrel length 1,450 mm (4 ft 9 in) Width 165 mm (6.5 in) Height 136 mm (5.4 in)
-
-
-
-
-
Caliber 23×115 mm (0.90 in) Barrels 1 Action Short recoil Rate of fire 800–850 rpm Muzzle velocity 690 m/s (2,264 ft/s)
-
Links to Youtube & Others
he most direct result of the search refers to the Nudelman-Richter (often transliterated as Rikhter) series of Soviet aircraft autocannons, which were developed by A. E. Nudelman and A. A. Richter.
Nudelman-Rikhter NR-23 Нудельман и Рихтер
NR-23: This was a 23 mm autocannon that entered service in 1949 as an improvement over earlier designs
Youtube Link
R-23: This weapon, developed by Aron Abramovich Rikhter, was a 23 mm gas-operated revolver cannon
