Role	Attack aircraft
National origin	United States
Manufacturer	Beechcraft
First flight	7 May 1944
Status	Canceled
Primary user	United States Army Air Forces
Number built	2

The Beechcraft XA-38 "Grizzly" was a World War II-era ground attack aircraft, developed by Beechcraft, but never put into production. The Grizzly was to have been fitted with a forward-firing 75 mm cannon to penetrate heavily armored targets. While the first prototype flew on 7 May 1944, testing established that the type would not be ready for the projected invasion of Japan. It also featured the Wright R-3350 engines already in use with the Boeing B-29 Superfortress—which had priority. Consequently, the XA-38 was canceled after a second prototype had been completed.

Design and development

The United States Army Air Forces Awarded The Beech Aircraft Corporation A Contract In December 1942 For Two Prototypes For Their Model 28 "Destroyer". Initially The Model 28 Had Been A Bomber-Destroyer Design But Shifted^[] To Give A Powerful Ground Attack Aircraft To Replace The Douglas A-20 Havoc, With The Ability To Hit "Hardened" Targets Like Tanks And Bunkers And To Attack Coastal Shipping. This Capability Was Achieved Through A 75 Mm Cannon With 20 Rounds, Mounted In A Fixed Position On The Nose As Well As Two .50 Cal (12.7 Mm) M2 Browning Machine Guns Firing Forward. Defensive Armament Consisted Of Remotely Controlled Ventral And Dorsal Turrets, Each Armed With Twin .50 Cal (12.7 Mm) Machine Guns. There Were To Be Two Crew Members, A Pilot And An Observer/Gunner In The Rear Cabin, Using Periscope Sights To Aim The Guns.

Testing

On 7 May 1944, Beech Test Pilot Vern Carstens Flew The XA-38 On Its Maiden Flight From The Company's Wichita Airfield. The Aircraft Proved Satisfactory In All Respects And Better Than Expected In Some, Including Top Speed.

During Testing, The XA-38 Prototypes Were Flown By USAAF Pilots And Serviced By Military Personnel, Proving To Be Reliable And Establishing A High Level Of Serviceability.

The Armament Proved Especially Effective; If Not For A Shift In Wartime Priorities In 1944, The Aircraft Would Most Likely Have Been Ordered In Quantity Even Though The B-29 Had Priority For The Wright R-3350 Engines. Instead, One Prototype Was Scrapped And The Other, Intended For The USAF Museum, Had An Unknown Fate.

Beech Aircraft Corporation Beechcraft XA-38 Grizzly

Beech Aircraft Corporation
Beechcraft XA-38 Grizzly

General Info

Crew: 2 Length: 51 ft 9 in (15.77 m) Wingspan: 67 ft 4 in (20.52 m) Height: 15 ft 6 in (4.72 m) Wing area: 626 sq ft (58.2 m²)

Powerplant

Empty weight: 22,480 lb (10,197 kg)
Max takeoff weight: 35,265 lb
Powerplant: 2 × Wright R-3350-43 air-cooled radial engines, 2,300 hp (1,700 kW) each

Performance

Maximum speed: 370 mph (600 km/h
Range: 1,625 mi (2,615 km, 1,412 nmi)
Service ceiling: (8,800 m)
Rate of climb: 2,600 ft/min (13 m/s)

Armament

- 1 × T15E1 75 mm cannon (20 rounds)
- 6 × .50 caliber (12.7 mm) M2 Browning machine guns (2 forward-facing, 2 in ventral turret, 2 in dorsal turret)

Special Links Beech Aircraft Corporation Beechcraft XA-38 Grizzly

Links to Youtube & Others

World War II
In March 1942, The Beech Aircraft Company Began Design Work On A Two-Seat Heavy Fighter To Destroy Enemy Bombers. Since The Curtiss XP-71 Had Already Been Delegated This Task, The Beech Developed The Design Into An Attack Aircraft To Replace The Douglas A-20 Havoc.

Beechcraft Aircraft Beechcraft XA-38 Grizzly

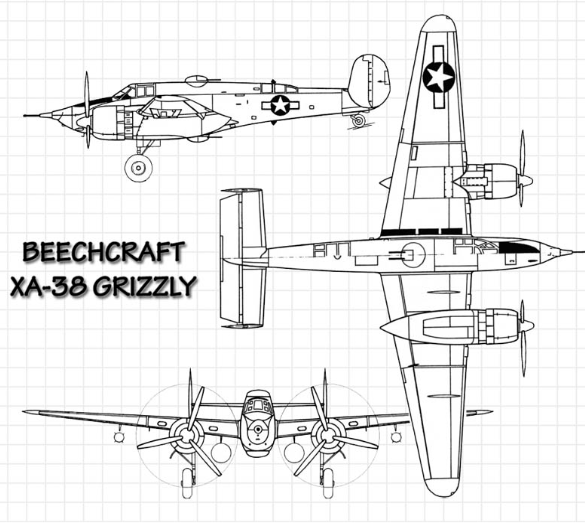

The XA-38 Was A Two-Place, Mid-Wing Aircraft With A Slim Fuselage And Twin Tails

Youtube Link

The Grizzly’s Aluminum Skin Was Entirely Flush Riveted, And The Fully Retractable Gear, Including Tailwheel, Was Engineered For Operations Out Of Unimproved Airstrips.
