Mil Moscow Helicpter plant Mil Mi-10 izdeliye 60 NATO reporting name: 'Harke'


General information
Type Aerial crane
National origin Russia
Manufacturer Mil Moscow Helicopter Plant
Status Active as of 2014 (Mi-10K)
Number built 55
History
Manufactured 1964–69
Introduction date 1963
First flight 15 June 1960
Developed from Mil Mi-6
.
History Mil Moscow Helicpter plant Mil Mi-10 izdeliye 60
NATO reporting name: 'Harke'



The Mil Mi-10 (NATO reporting name Harke), given the product number izdeliye 60, is a Soviet military transport helicopter of flying crane configuration, developed from the Mi-6, entering service in 1963. While most versions had been retired by 2009, the short-legged Mi-10K was still in service as of 2014

The limitations of the Mi-10 in the slung load mission soon became obvious, chiefly, the loss of payload due to the heavy and complicated undercarriage, and more importantly the almost complete lack of oversight of the slung load, despite the inclusion of a CCTV (closed circuit television) system intended for observation of slung loads

  • Design and development

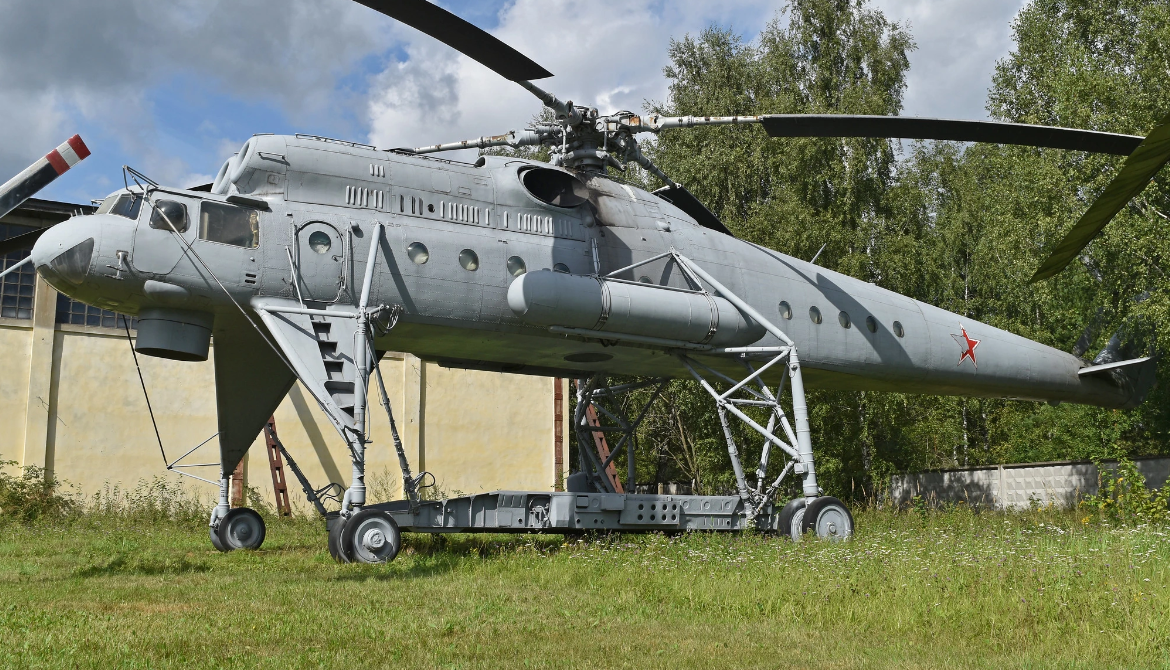

    Mil Mi-10 at Monino Central Air Force Museum (Moscow)

    The advent of the Mi-6 gave the Soviet Union the very useful ability to move and place large, bulky or heavy loads with precision. Limitations of the Mi-6 in the flying crane role included a weight to payload ratio and the inability of the crew to easily see the load and its intended final position. A Council of Ministers directive of 20 February 1958 tasked OKB-329 (OKB Mil) with the development of a dedicated flying crane helicopter for carrying bulky loads unable to be carried in the hold of an Mi-6.

    The Mil OKB's response drew heavily on the Mi-6, utilising the dynamic components and 4,100 kW (5,500 hp) Soloviev D-25V turboshaft engines, on a slim fuselage sitting on four tall strut braced undercarriage legs, with a wide track allowing the helicopter to taxi over loads, or for mobile loads to be moved underneath. The fuselage can carry 28 passengers inside the cabin as well as 3 t (6,600 lb) of cargo loaded through a side door in the aft fuselage, by an integral boom and winch. Underslung loads can be attached directly to the fuselage by hydraulically operated clamps, or carried on a 8.5 m × 3.6 m (28 ft × 12 ft) pallet lifted by the winch and braced by cables and/or struts to the undercarriage legs. The external sling system of the Mi-6, with a capacity of 8 t (18,000 lb) could also be fitted under the centre fuselage.

    Variants Military

    Mil Mi-10 displayed at the 1965 Paris Air Show with a LAZ bus carried beneath it.
    Short-legged Mi-10K

0

Km

Ceiling

0

Km

MAX RANGE

0

Km.h

Aircraft Speed

0

Max Crew

Gallery

Photo Gallery
Mil Moscow Helicpter plant Mil Mi-10
izdeliye 60 NATO reporting name: 'Harke'

gallery
gallery
gallery
element
element
Mil Moscow Helicpter plant Mil Mi-10 izdeliye 60 NATO reporting name: 'Harke'

Mil Moscow Helicpter plant Mil Mi-10
izdeliye 60 NATO reporting name: 'Harke'

1

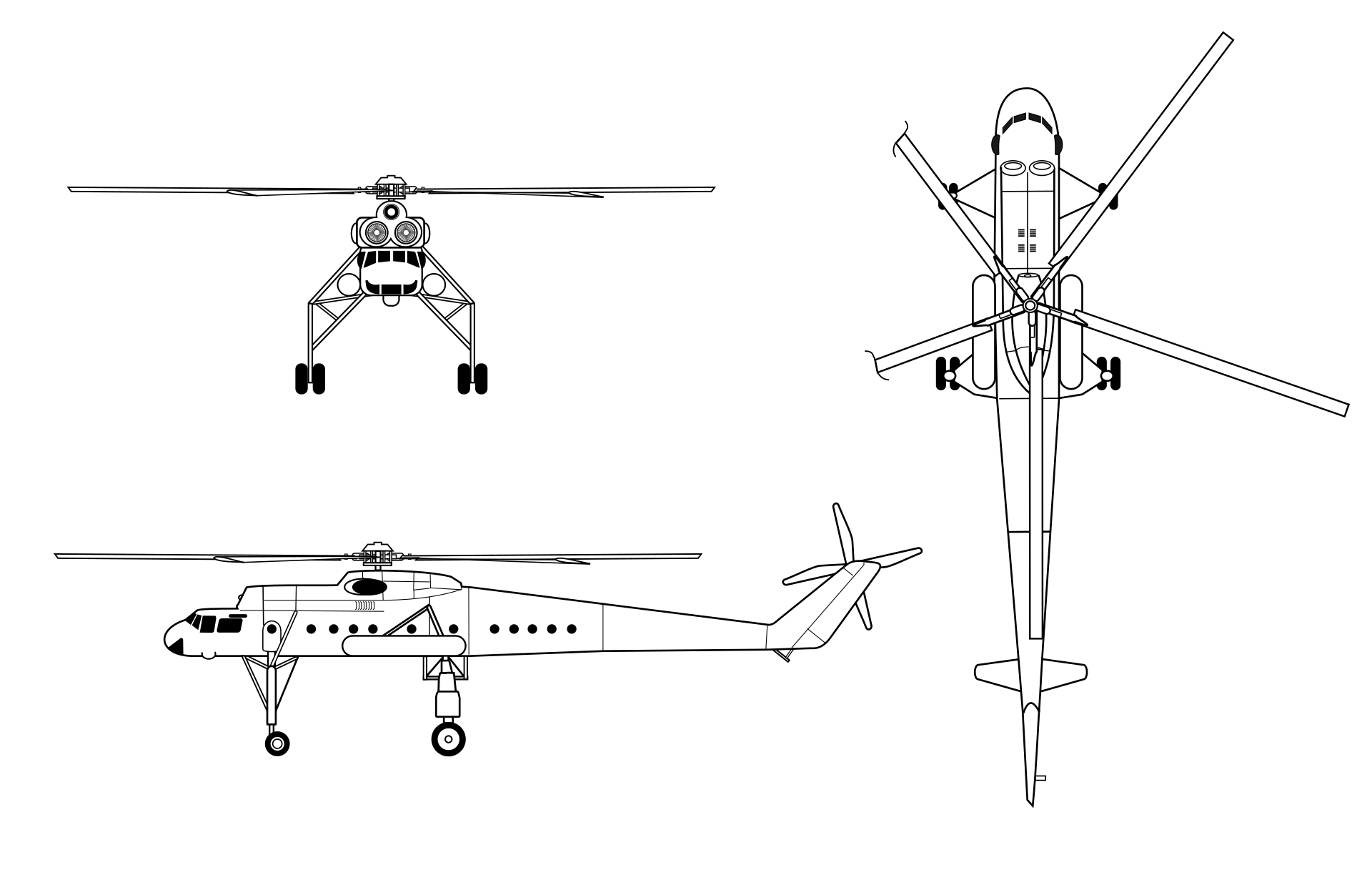

General characteristics

  • Crew: 3 (pilot, copilot and flight engineer, navigator/radio operator and optional technician)
  • Capacity:
    • 28 passengers or
    • 3 t (3,000 kg; 6,600 lb) internally
    • up to 15 t (15,000 kg; 33,000 lb) payload on platform or
    • 8 t (8,000 kg; 18,000 lb) max slung payload
  • Length: 32.86 m (107 ft 10 in) (fuselage only), 41.89 m (137 ft 5 in) (overall length, rotors turning
2

Powerplant

  • Powerplant: 2 × Soloviev D-25V turboshaft, 4,100 kW (5,500 hp) each
  • Main rotor diameter: 35.00 m
  • Main rotor area: 962 m2
  •
plane
3

Specifications

  • Maximum speed: 335 km/h (
  • Cruise speed: 180 km/h
  • Range: 430 km
  • Hovering ceiling out of ground effect: 3,000 m (9,840 ft)
4

Armament

Special Links Mil Moscow Helicpter plant Mil Mi-10 izdeliye 60 NATO reporting name: 'Harke'

Links to Youtube & Others
