Aircrafttotal Encyclopedia


General information
Type	Anti-submarine helicopter
National origin	Soviet Union
Manufacturer	Mil Moscow Helicopter Plant
Status	In service
Primary users	Soviet Navy Russian Navy Ukrainian Navy Polish Navy
Number built	273
History
Manufactured	1969-1986
Introduction date	1975
First flight	September 1969
Developed from	Mil Mi-8

Formal development of an anti-submarine warfare (ASW) version of the Mil Mi-8 transport helicopter was authorised by the Soviet Communist Party Central Committee and Council of Ministers in April 1965, with the objective of replacing the Mil Mi-4 in the short-range, shore based anti-submarine role. The new helicopter was required to have an endurance of 2 hours on station at a radius of 222 kilometres (120 nmi; 138 mi) from base. The new design (with the internal designation V-14) differed from the Mi-8 in having a boat-like hull similar to the Sea King, allowing it to operate off the water, and a retractable four-point undercarriage, with the mainwheels retracting into large sponsons on the rear of the fuselage. The helicopter was to be powered by two Klimov TV3-117MT turboshaft engines. A watertight weapons bay is fitted to the centreline of the fuselage allowing internal carriage of a single torpedo or eight depth charges, while a radome housing a search radar is fitted beneath the nose

Design

Mil Mi-14 Haze ASW & SAR

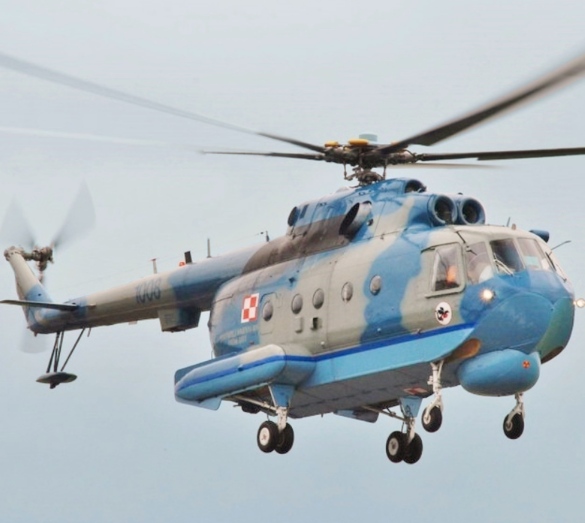

Ukrainian Navy Mi-14PL

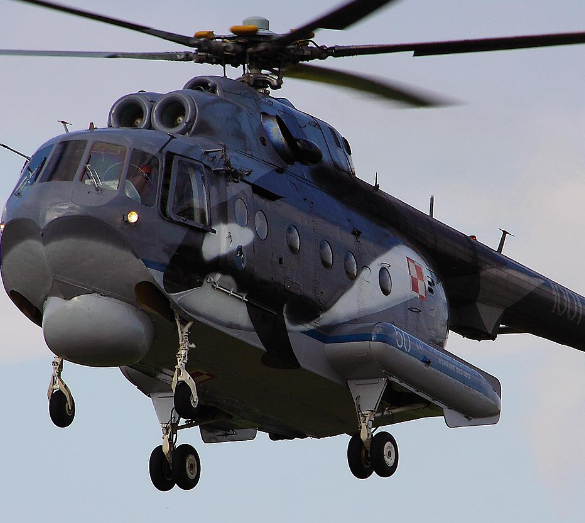

IThe Mil Mi-14 (Russian: Миль Ми-14, NATO reporting name: Haze) is a Soviet shore-based nuclear-capable amphibious anti-submarine helicopter derived from the earlier Mi-8.

Variants Military

Georgian Mi-14

V-14

Prototype of the Mi-14 helicopter.

Mi-14PL (NATO Haze-A)

Anti-submarine warfare helicopter, equipped with towed APM-60 MAD, OKA-2 sonobuoys and a retractable Type 12-M search radar, armed with either a single AT-1 or APR-2 torpedo, one Skat nuclear depth bomb or eight depth charges. A single Mi-14PL was used to carry out trials with the Kh-23 (NATO designation AS-7 Kerry) air-to-surface missile but this modification does not seem to have entered service.

Mi-14PLM

Improved anti-submarine warfare version with Os'minog ASW suite, with new search radar, dipping sonar and digital computer. Limited use.

Mi-14PŁ/R

Polish conversion of two Mi-14PŁ (Polish designation for Mi-14PL) to search and rescue version, with ASW equipment removed, developed in 2010.

Mi-14BT (NATO Haze-B)

Mine sweeping helicopter with ASW systems removed and equipped for towing Mine Countermeasures sleds. 25–30 built, with six exported to East Germany and two to Bulgaria.

Mi-14PS (NATO Haze-C)

Search and rescue version with search lights and sliding doors with hoist

Mil Moscow Helicpter plant Mil Mi-14 V-8G/V-14 NATO reporting name: 'Haze'

General characteristics

Crew: 4
Length: 18.38 m (60 ft 4 in)
Height: 6.93 m (22 ft 9 in)
Empty weight: 11,750 kg (25,904 lb)
Max takeoff weight: 14,000 kg (30,865 lb)

Powerplant

Powerplant: 2 × Klimov TV3-117MT turboshaft engines, (1,950 hp) each
Main rotor diameter: 21.29 m
Main rotor area: 356 m²

Specifications

Maximum speed: 230 km/h
Ferry range: 1,135 km
Endurance: 4 hours with maximum fuel
Service ceiling: 3,500 m (11,500 ft)

Armament

- - - torpedoes, bombs or depth charges

Special Links Mil Moscow Helicpter plant Mil Mi-14 V-8G/V-14 NATO reporting name: 'Haze'

Links to Youtube & Others

The Mi-14 (Haze) Russian Anti-Submarine Warfare (ASW) Helicopter is a naval land-based helicopter, derived from the Mi-8 Hip, which is configured primarily for anti-submarine warfare (ASW). It also serves in minesweeping and search-and-rescue (SAR) roles

Mil Helicpter plant
Mil Mi-14 V-14 'Haze'

A watertight weapons bay is fitted to the centreline of the fuselage allowing internal carriage of a single torpedo.

Youtube Link

Out of the almost 300 Mi-14s produced at Kazan Helicopters between 1973 and 1986, it is estimated that just 44 examples remain in active service.

Mil Moscow Helicpter plant
Mil Mi-14 V-8G/V-14
NATO reporting name:
'Haze'

Mil Mi-14 V-8G/V-14 NATO name: 'Haze'

.

History Mil Moscow Helicpter plant Mil Mi-14 V-8G/V-14
NATO reporting name: 'Haze'

Design
