Pilatus Aircraft Ltd.
Pilatus P-3 Trainer

General information
Type Trainer aircraft
Manufacturer Pilatus Aircraft
Status in use in private hands
Primary users Swiss Air ForceBrazilian Navy
Number built 79
History
Introduction date 1956
First flight 3 September 1953
Developed into Pilatus PC-7
.
History Pilatus Aircraft Ltd.
Pilatus P-3 advanced training



The Pilatus P-3 was a military training aircraft built by Pilatus Aircraft of Switzerland. Design and development The Pilatus P-3 was designed for primary and advanced training (including night flying, aerobatics and instrument flying). The military versions were designated P-3-03 to P-3-05. It was of all-metal construction with a retractable tricycle undercarriage and tandem seating. There was provision for underwing racks for light practice bombs or rockets and a machine gun in a pod below the port wing. Although such kits were purchased, they were never used.

Operational history

Brazilian P-3, lacking the ventral fin
Pilatus P-3-05

The first prototype P-3.01 was built in 1953 and flew on 3 September the same year with a two-blade propeller. The power of the engine of the aircraft proved to be insufficient. A second prototype to become the military prototype flew in August, 1954, now equipped with a different engine and a three blade propeller. During the evaluation of the military prototype, now designated P-3.02 (HB-HOO, becoming A-801 in January 1956), the aircraft had to perform against a T-34 Mentor that had been brought to Switzerland. The test pilot at the demonstration flight went to the limits and flew a standing "8", knowing, the Mentor would not be able to fly this manoeuvre.After the acceptance by the Swiss Air Force, the service received a pre-series of 12 aircraft type P-3.03 (A-802-A-813). Six additional examples were built and flew with civilian markings, those P-3.04 were later acquired by the Brazilian Navy. The Swiss Air Force then purchased 60 airframes of the type P-3.05 (A-814-A-873) and used their P-3s as a training aircraft until 1983, although it continued to be used as a liaison aircraft for another decade. In 1993–1995, 65 ex-Swiss Air Force aircraft were sold on the private market.

Development

Operators

Brazil
Switzerland


0

Km

Ceiling

0

Km

Combat RANGE

0

Km/h

Aircraft Speed

0

Max Crew

element
element
Pilatus Aircraft Ltd.

Pilatus Aircraft Ltd.
Pilatus Aircraft Ltd. Pilatus P-3 advanced training

1

General Info

      • Crew: one
      • Capacity: one passenger
      • Length: 8.75 m (28 ft 8 in)
      • Wingspan: 10.40 m (34 ft 1 in)
      • Height: 3.05 m (10 ft 0 in)
      • Wing area: 16.55 m2 (178.1 sq ft)
2

Powerplant

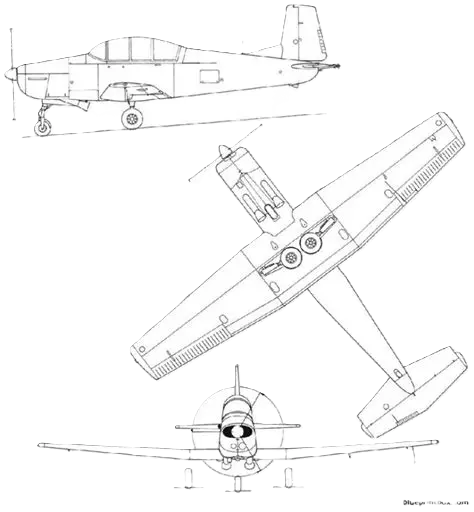

plane
3

Performance

  • Maximum speed: 310 km/h (190 mph, 170 kn) sea level to 2,000 m (6,600 ft) at 1,500 kg (3,307 lb) AUW
  • Cruise speed: 252 km/h (157 mph, 136 kn) economical cruise
    • Stall speed: 100 km/h (62 mph, 54 kn)
    • Never exceed speed: 500 km/h (310 mph, 270 kn)
    • Range: 750 km (470 mi, 400 nmi) maximum in still air
    • Service ceiling: 5,500 m
.
Special Links Pilatus Aircraft Ltd. Pilatus P-3 advanced training

Links to Youtube & Others

The Pilatus P-3 was a military training aircraft built by Pilatus Aircraft of Switzerland. It was designed for primary and advanced training (including night flying, aerobatics and instrument flying).

Pilatus Aircraft Ltd. Pilatus P-3 training

The first prototype was built in 1953 and flew on September 3rd, 1953. The Swiss Air Force received 72 examples
