General Atomics MQ-20 Avenger (formerly Predator C)

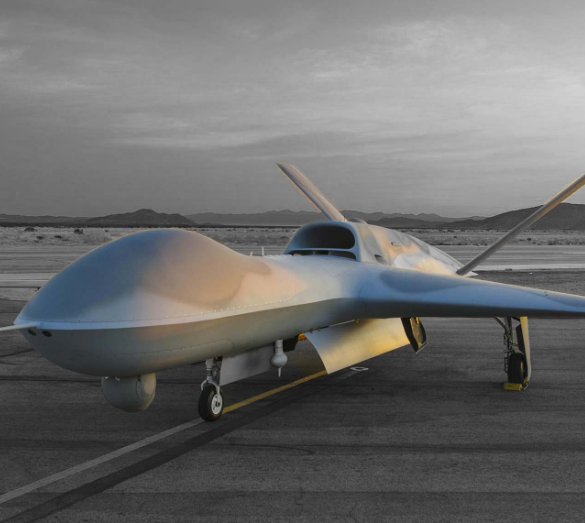

The General Atomics MQ-20 Avenger (formerly Predator C) is a developmental unmanned combat aerial vehicle built by General Atomics Aeronautical Systems for the U.S. military. Design and development Unlike the previous MQ-1 Predator and MQ-9 Reaper (Predator B) drones, the Avenger is powered by a turbofan engine, and its design includes stealth features such as internal weapons storage and an S-shaped exhaust for reduced infrared and radar signatures. Its first flight occurred on 4 April 2009.

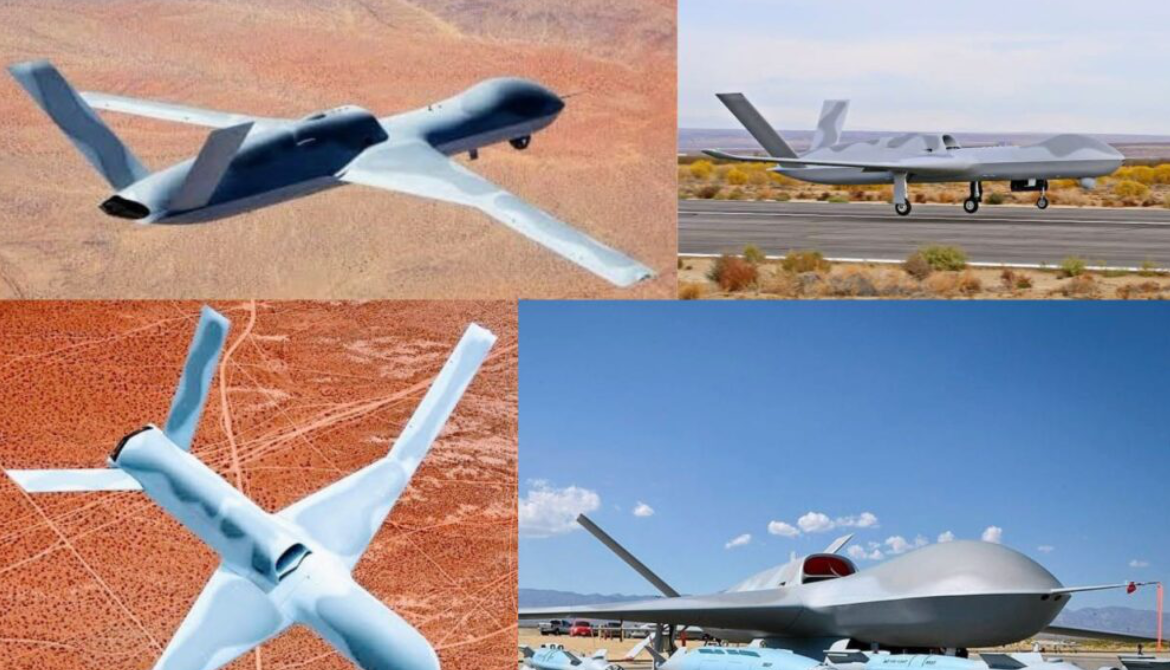

The first flight of the first prototype Avenger occurred on 4 April 2009 at the company's Grey Butte Field Airport Flight Operations Facility in Palmdale, California. The aircraft took off and landed without any discrepancies and was ready to fly again once refueled. Following flights were performed successfully on 13 and 14 April. The second prototype Avenger performed its first flight on 12 January 2012, meeting all performance objectives and refining the first prototype design to an operational capability. The Tail 2 prototype featured a four-foot longer fuselage to accommodate larger payloads and more fuel. This larger Avenger can carry a larger payload of up to 3,500 pounds (1,600 kg) of weapons internally and on its wing hard points. On 15 February 2012, the Air Force cancelled its MQ-X program, which was supposed to find an aircraft to replace the MQ-9 Reaper The Sea Avenger variant was part of the Navy's cancelled Unmanned Carrier-Launched Airborne Surveillance and Strike (UCLASS) program. On 15 November 2012, the Avenger flew for three hours while being controlled by the General Atomics Advanced Cockpit Ground Control Station (GCS). The Advanced Cockpit GCS has a wrap-around visual display and multi-dimensional moving map to increase situational awareness and reduce pilot workload. The Advanced Cockpit GCS has flown an MQ-1 Predator and is planning to fly an MQ-9 Reaper as part of an Air Force initiative to enable interoperability with all USAF Remote Piloted Aircraft (RPA). In July 2013, a third Avenger was scheduled to begin flight testing. Assembly of the fourth Avenger was expected to be finished by spring 2014.


15.2
Km

Ceiling

18
Hr

Endurance

740
Km/h

Performance

0
Crew

Max Crew

element
element
General Atomics Aeronautical Systems, Inc.

General Atomics Aeronautical Systems, Inc.
General Atomics MQ-20 Avenger

1

General Info 1

      • Crew: 2 (ground control)
      • Length: 44 ft 0 in (13 m)
      • Wingspan: 66 ft 0 in (20 m) sweep angle 17°
      • Max takeoff weigh (8,255 kg)
      • Fuel capacity:  (3,600 kg)
      • Powerplant: 1 × Pratt & Whitney Canada PW545B turbofan, 3,991 lbf (17.75 kN) thrust
2

General Info 2

plane
3

General Info 3

  • Maximum speed:  (740 km/h, 400 kn)
  • Cruise speed: (648 km/h, 350 kn)
  • Endurance: 18 hours
  • Service ceiling: 50,000 ft (15,240 m)
4

Armament

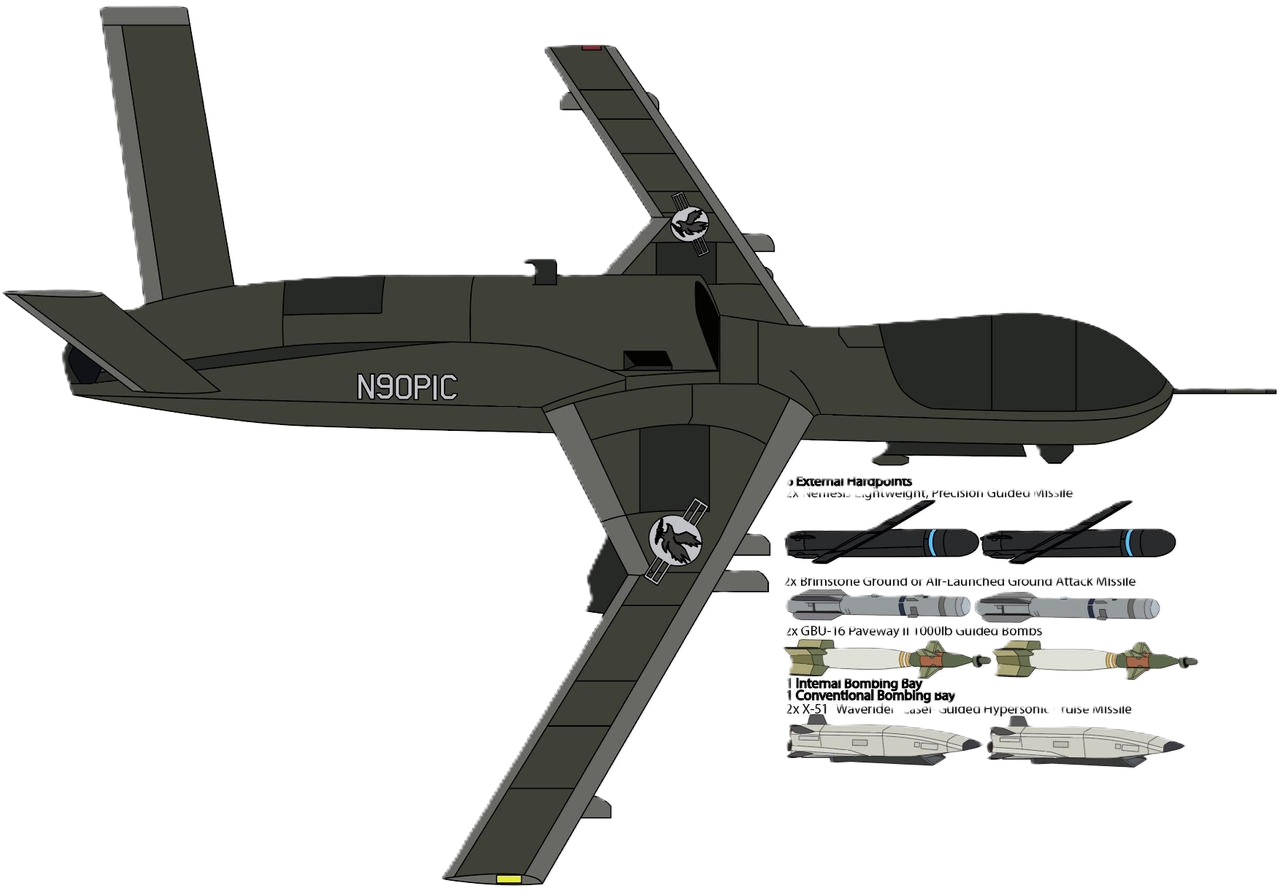

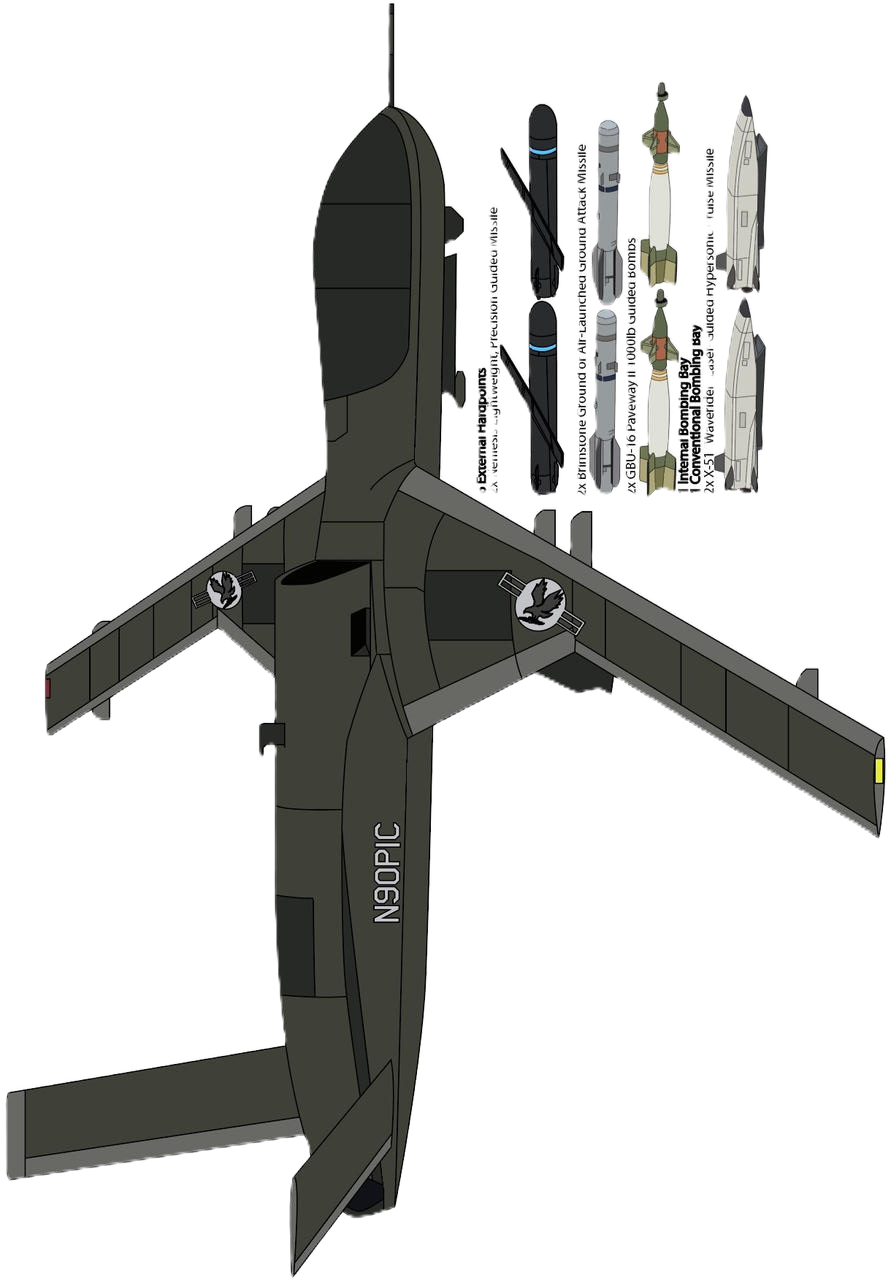

      • Internal weapons bay with 3,500 pounds (1,600 kg) capacity. 6 external hardpoints. 6,500 pounds (2,900 kg) payload total.

.
Special Links General Atomics Aeronautical Systems, Inc. General Atomics MQ-20 Avenger (formerly Predator C)

Links to Youtube & Others

Weapons testing
On November 28, 2023, an Avenger test deployed the Advanced Air-Launched Effects (A2LE) small uncrewed aerial system (sUAS) from its internal weapons bay over Dugway Proving Ground, Utah.

General Atomics
MQ-20 Avenger

General Atomics has offered the Predator C Avenger to Canada as a contender for its Joint Unmanned Surveillance (JUSTAS)

interior

Youtube Link

On 3 May 2010, GA-ASI introduced Sea Avenger, a carrier-based derivative of the Predator C Avenger UAS, intended to fulfill the U.S. Navy's need.
