Piaggio - Selex Aerospace
Piaggio P.1HH Hammerhead
Data primo volo 14 novembre 2013
First flight 23 September 1986
Piaggio - Selex
P.1HH Hammerhead
|
|
| Descrizione | |
|---|---|
| Tipo | aeromobile a pilotaggio remoto da ricognizione ed attacco (nelle versioni predisposte) |
| Costruttore |  Piaggio Aerospace |
| Data primo volo | 14 novembre 2013 |
| Utilizzatore principale | Aeronautica Militare |
| Altri utilizzatori |  Al-Quwwāt al-Jawiyya al-Imārātiyya |
| Sviluppato dal | Piaggio P180 Avanti |
.
History Piaggio-Selex Aerospace

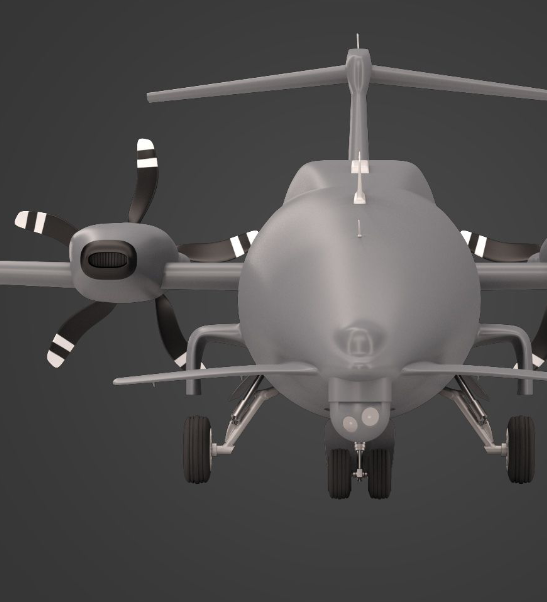

Piaggio P.1HH Hammerhead (UAV)
First flight 23 September 1986 (Piaggo Avanti)

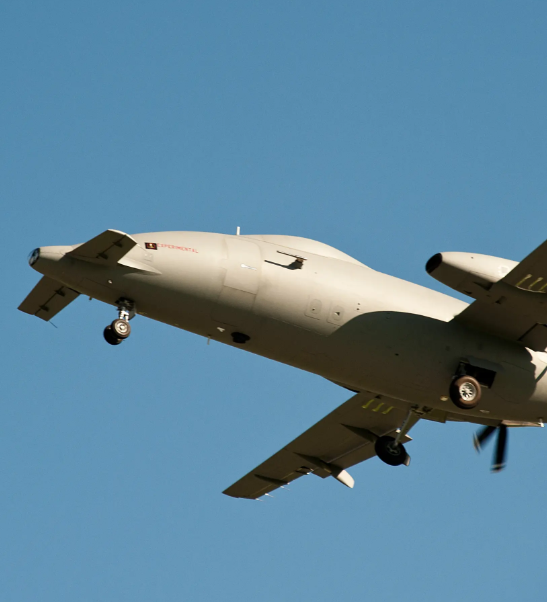

The P.1HH HammerHead is a remotely piloted aircraft (RPA) designed and produced by the Italian Piaggio Aerospace . The aircraft was designed to perform various surveillance, reconnaissance and attack missions.
The P.1HH is a remotely piloted aircraft developed starting from the fuselage of the Piaggio P180 and its characteristics mean that the aircraft falls into the MALE category (medium altitude, long endurance): it reaches an altitude of 13,700 metres with a flight time of over 16 hours. Like the P.180, the P.1HH is characterised by pusher propellers which give it a particularly high-pitched sound signature. Furthermore, thanks to this "descent", the P.1HH is able to reach particularly high speeds. The P.180 Avanti II platform has been redesigned with a new aerodynamic configuration, a higher load capacity and greater wing extension. The external section of the wings is removable to allow the aircraft to be transported, thus making it possible to use it in any scenario.
The mission is managed by a ground station connected through control systems, including satellite systems, which allow remote control of the navigation and mission systems.
Piaggio Aerospace will build the P.1HH in partnership with Selex ES . The Finmeccanica company will supply the flight control and navigation systems for the unmanned aircraft and the skyISTAR mission, which integrates the SeaSpray 7300E R radar, the communication interface and data link. The P.2HH is being developed as a derivative of the P.1HH, with a larger wingspan and greater flight endurance.
0
KmCeiling
0
KmCombat RANGE
0
Km/hAircraft Speed
0
Max Crew

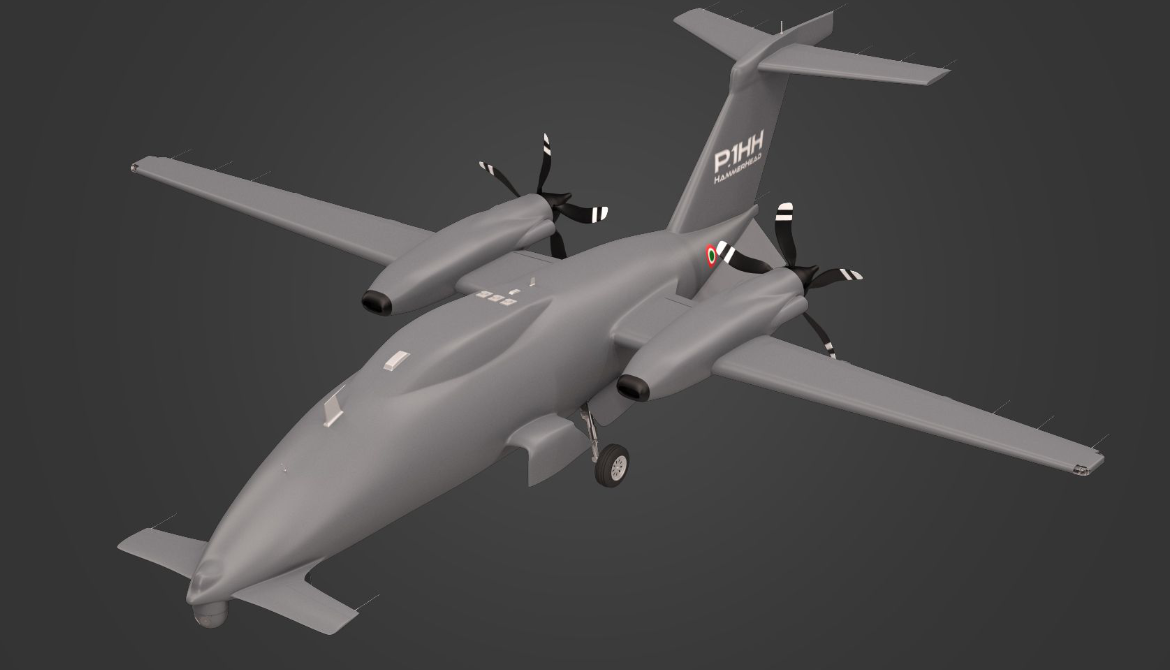

Photo Gallery
Piaggio-Selex Aerospace
Piaggio P.1HH Hammerhead (UAV)
Piaggio-Selex Aerospace
Piaggio P.1HH Hammerhead (UAV)
First flight 23 September 1986 (Piaggo Avanti)
General Info

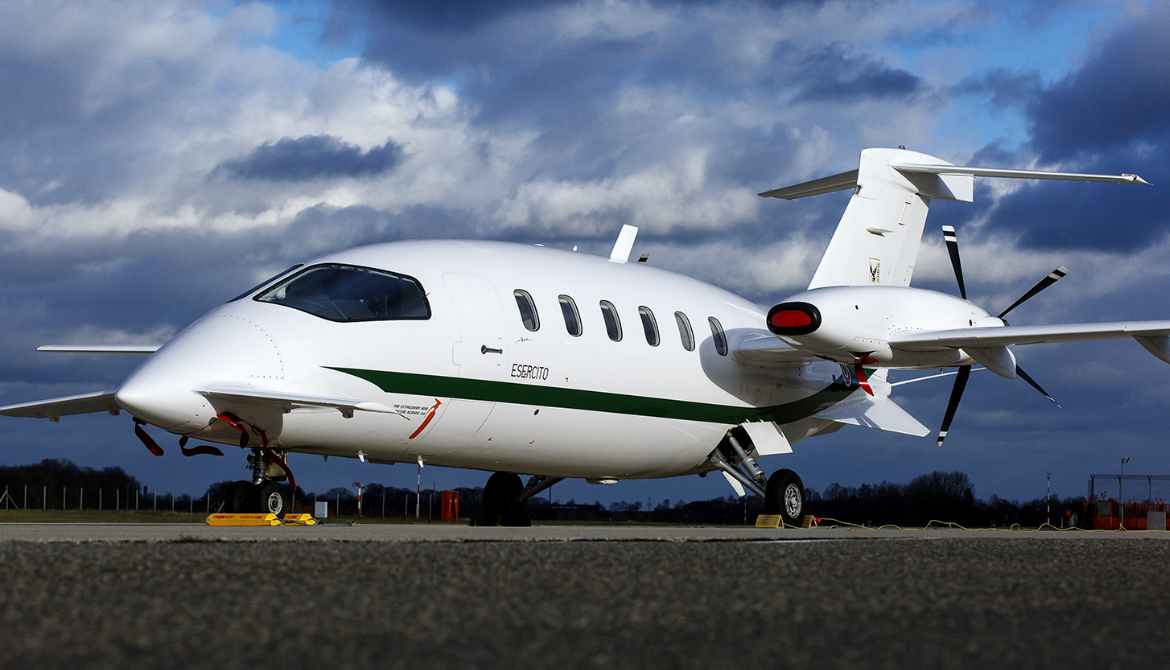

Data P.180 Avanti
-
-
- Crew: 1
- Capacity: 7–9
- Length: 14.4 m (47.3 ft)
- Wingspan: 14 m (46 ft)
- Height: 4.0 m (13 ft)
- Wing area: 15.99 m2 (172.1 sq ft)
-
Powerplant
- Empty weight: 3,799 kg (8,375 lb)
- Max takeoff weight: 5,488 kg
- Fuel capacity: 1,271 kg (2,802 lb)
- Max landing weight: 5,216 kg
- Horizontal stabilizer area: 3.83 m²
- Powerplant: 2 × Pratt & Whitney Canada PT6A-66B turboprop, 630 kW (850 shp) each ISA+28C Flat Rated
-
-
Performance
- Maximum speed: 740 km/h (460 mph, 400 kn) FL310 high speed cruise
- Cruise speed: 589 km/h (366 mph, 318 kn) FL410 long range cruise
- Minimum control speed: 190 km/h (120 mph, 100 kn)
- Range: 2,800 km (1,740 mi, 1,510 nmi) 4 passengers, NBAA IFR, 100-nm alternate
- Ferry range: 2,830 km
- Service ceiling: 12,000 m (41,000 ft)
- Time to altitude: 10 min to FL 250
Piaggio P.1HH Hammerhead (UAV)i
Links to Youtube & Others
An unmatched combination of range, wide operative speeds, fast climb gradient, high operative ceiling and variety of payloads, provides end-users with a powerful yet flexible Defense System that outperforms other MALE Systems, identifying the P.1HH HammerHead as a Super MALE UAS.
Piaggio - selex (Uav)
P.1HH Hammerhead
The Piaggio Aerospace P.1HH HammerHead is a new, state-of-the-art Unmanned Aerial System (UAS) designed for Intelligence, Surveillance and Reconnaissance
Youtube Link
John Sneller, Head of Aviation at Jane's talks to Maurizio Longaretti, Piaggio ATO Chief Flight Instructor about manned and unmanned aircraft - Piaggio Aerospace's P.180 Avanti EVO and P.1HH HammerHead.
