General Info

Canadair Ltd.
CT-114 Tutor

General information
Type Trainer, Ground-attack aircraft
National origin Canada
Manufacturer Canadair
Status Small numbers currently in flying condition for testing and aerobatic demonstration
Primary users Canadian Armed ForcesRoyal Canadian Air Force
Royal Malaysian Air Force
Number built 212
History
Manufactured 1963–1966
First flight 13 January 1960
Retired 2000 as a trainer (Canadian Armed Forces)
.
History Canadair / Bombardier Ltd.
Canadair CT-114 Tutor Manufactured 1963–1966



The Canadair CT-114 Tutor (company model CL-41) was the Royal Canadian Air Force (RCAF), and later Canadian Armed Forces, standard jet trainer between the early 1960s and 2000. It was designed and produced by Canadian aircraft manufacturer Canadair.

The CT-114 Tutor is a single-engine turbojet-powered trainer aircraft. It was purpose-designed for the training role, and possesses numerous favourable qualities, including a high level of reliability and favourable operating economics.[5] It is capable of a wide performance range, possessing a top speed at altitude of 795 kmh (429 kt) and a diving speed of 885 kmh (478 kt) against a relatively low stalling speed of 71kt. The Tutor is furnished with manual flight controls, which incorporate spring tabs. It is intentionally aerodynamically stable in flight, a factor which traditionally has aided in the training of fresh pilots unfamiliar with the demands of flight.

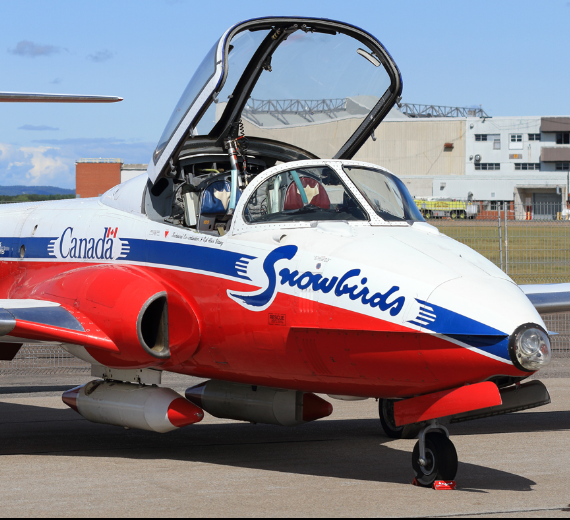

The Tutor features a side-by-side cockpit. During standard operations, the observing instructor was seated on the right-hand side and the flying student pilot on the left; normally, only the left-hand side normally featured full flight controls. However, following experiences with the Snowbirds display team, a number of aircraft were reconfigured with extra controls so that they would be flyable from either position. The cabin, which is fitted with a rear-hinged canopy over both crew members, can be pressurized to a differential of 3 psi (20 kPa), the equivalent to an altitude of about 2,000 m, for pilot comfort.[citation needed]

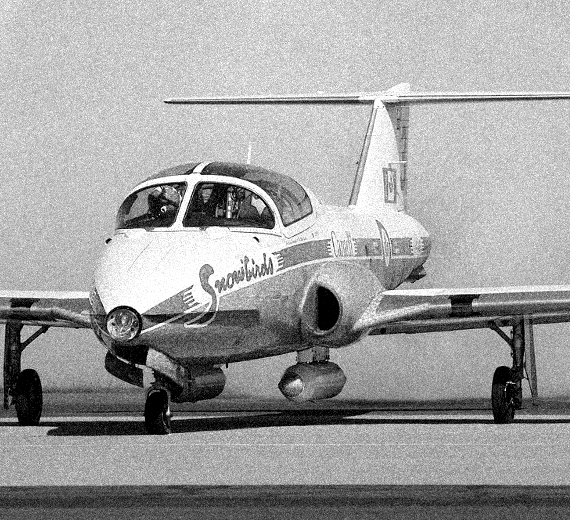

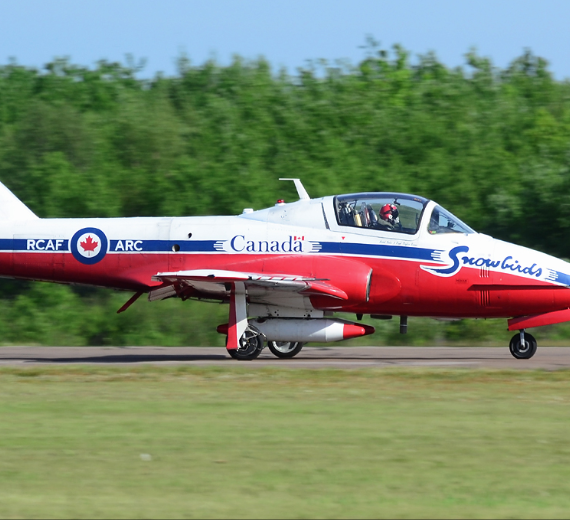

For aerial display purposes, the Tutor was readily capable of being fitted with a smoke generator, including a pair of under-fuselage pods to house the pressurized diesel fuel used; the use of red dye in the smoke was discontinued fairly quickly as it was found to be highly corrosive . [5] Various other modifications would also be made to display aircraft; these could be routinely installed and uninstalled as airframes would regularly be exchanged between display and training flights..

0

Km

Ceiling

0

Km

Combat RANGE

0

Km/h

Aircraft Speed

0

Max Crew

element
element
Aeromacchi Leonardo

Canadair / Bombardier
Canadair CT-114 Tutor Trainer
Manufactured 1963–1966

1

General Info

      • Crew: 2
      • Length: 32 ft 0 in (9.75 m)
      • Wingspan: 36 ft 4 in (11.07 m)
      • Height: 9 ft 4+1⁄2 in (2.858 m)
      • Wing area: 220 sq ft (20 m2)
2

Powerplant


      • Empty weight: 4,840 lb (2,195 kg)
      • Gross weight: 7,348 lb (3,333 kg)
      • Max takeoff weight: 11,000 lb (4,990 kg)
      • Powerplant: 1 × Orenda J85-CAN-40 turbojet, 2,650 lbf (11.8 kN) thrust
plane
3

Performance

  • Maximum speed: 486 mph (782 km/h,
  • Range: 944 mi (1,519 km, 820 nmi)
  • Service ceiling: 44,500 ft (13,600 m)
  • Rate of climb: 4,220 ft/min (21.4 m/s)
  • g limits: +8.0, -4.0
4

Armament

  • Hardpoints: 2
.
