Fiat Aviazione / Aeritalia
Fiat G-91Y Yankee
First flight 27 December 1966
Introduction 1966 Retired 1994 Produced 1966-1972
Fiat Aviazione / Aeritalia Fiat G-91Y Yankee
.jpg) |
|

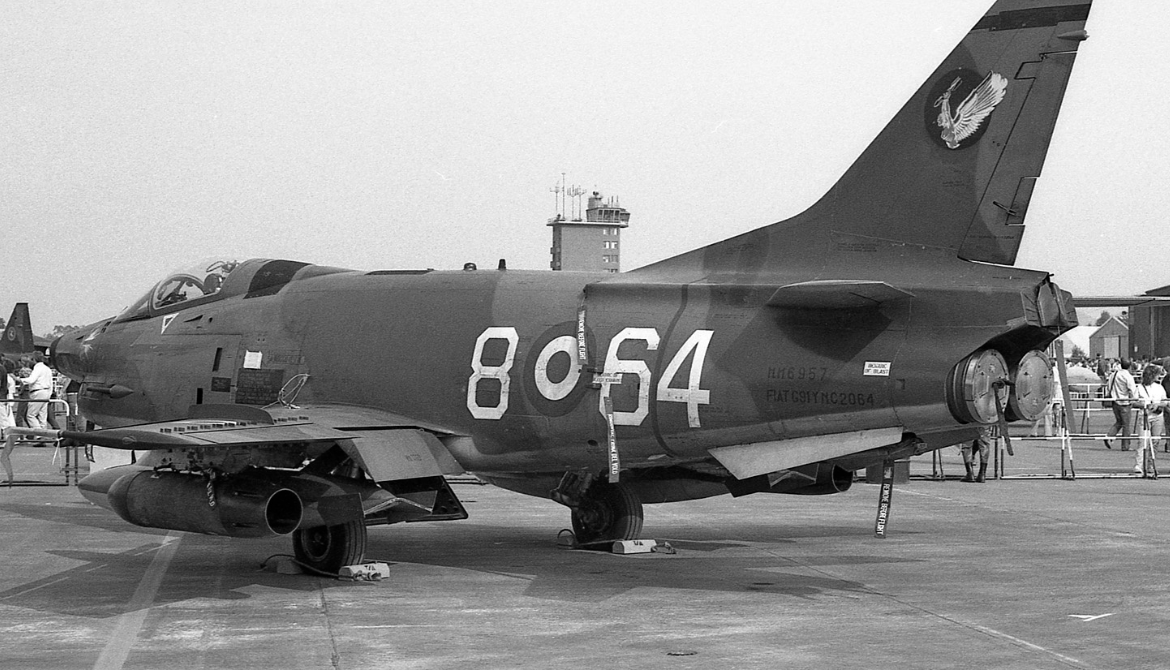

| A G91Y at Bremgarten in September 1992 | |
| Role | Ground attack |
|---|---|
| National origin | Italy |
| Manufacturer | Fiat Aviazione Aeritalia |
| First flight | 27 December 1966 |
| Introduction | July 1968 |
| Retired | 1994 |
| Primary user | Italian Air Force |
| Produced | 1966-1972 |
| Number built | 2 prototypes + 65 |
| Developed from | Fiat G.91 |
.
History Fiat Aviazione / Aeritalia
Fiat G-91Y Yankee
The Fiat (later Aeritalia) G.91Y is an Italian ground-attack and reconnaissance aircraft which first flew in 1966. Although resembling its predecessor, the Fiat G.91, the aircraft was in fact a complete redesign, a major difference being that it was equipped with a new twin-engine configuration, replacing the original single engine.
The G.91Y was an increased-performance version of the Fiat G.91 funded by the Italian government. Based on the G.91T two-seat trainer variant, the single Bristol Orpheus turbojet engine of this aircraft was replaced by two afterburning General Electric J85 turbojets which increased thrust by 60% over the single-engined variant. Structural modifications to reduce airframe weight increased performance further and an additional fuel tank occupying the space of the G.91T's rear seat provided extra range. Combat manoeuvrability was improved with the addition of automatic leading edge slats
A Fiat G.91Y at Ramstein Air Base in 1986For improved aerodynamics, the MB-339 features an enlarged tailfin over its predecessor.
Variants
- G.91Y - Prototype and production aircraft.
- G.91YT - Projected two-seat trainer variant.
- G.91YS - Prototype with enhanced avionics and extra hardpoints to carry AIM-9 Sidewinder missiles for evaluation by Switzerland. First flown on 16 October 1970.
0
KmCeiling
0
KmFerry RANGE
0
MachAircraft Speed
0
Max Crew
Photo Gallery
Fiat Aviazione / Aeritalia
Fiat G-91Y Yankee
Fiat Aviazione / Aeritalia
Fiat G-91Y Yankee
General Info
-
-
- Crew: 1
- Length: 11.67 m (38 ft 3 in)
- Wingspan: 9.01 m (29 ft 7 in)
- Height: 4.43 m (14 ft 6 in)
- Wing area: 18.13 m2 (195.1 sq ft)
-
Powerplant
-
- Empty weight: 3,900 kg
- Gross weight: 7,800 kg
- Max takeoff weight: 8,700 kg (19,180 lb) max overload
- Powerplant: 2 × General Electric J85-GE-13A afterburning turbojet engines, 12.12 kN (2,725 lbf) thrust each dry, 18.15 kN (4,080 lbf) with afterburner
-
Performance
- Maximum speed: 1,110 km/h (690 mph, 600 kn) at sea level
- Maximum speed: M. 0.95 at 10,000
- Cruise speed: 630 km/h (390 mph
- Ferry range: 3,400 km (2,100 mi, 1,800 nmi) with drop tanks
- Service ceiling: 12,500 m
- Rate of climb: (17,000 ft/min)
Armament
- Guns: 2 × 30 mm (1.18 in) DEFA cannons
- Hardpoints: 4 under-wing pylon stations with a capacity of 1,814 kg (4,000 lb)
.
Links to Youtube & Others
An initial order of 55 aircraft for the Italian Air Force was completed by Fiat in March 1971, by which time the company had changed its name to Aeritalia (from 1969.
Fiat Aviazione / Aeritalia
Fiat G-91Y Yankee
AMI (Italian Air Force) placed orders for two batches; 35 fighters followed by another 20, later cut to 10.
Youtube Link
Those 'Gruppi' (Italian equivalent of British 'squadrons', usually equipped with 18 aircraft) lasted until the early '90s, as the only ones equipped with the 'Yankee'.
