Cessna Aircraft Company
Cessna Citation M.2 Mustang
Produced 2006–2017
Cessna Citation Mustang M.2
Role Business jet
National origin United States
Manufacturer Cessna
First flight April 23, 2005
Introduction 2006
Status Out of production
Primary users GlobeAir AG, Hoersching, Austria WiJet, Paris + Blink Ltd, London Aeropartner A.S., Prague
Produced 2006–2017
Number built 479
.
History Cessna Aircraft Company
Cessna Citation M.2 Mustang
The Cessna Citation Mustang is a very light jet that was built by Cessna. Launched at the 2002 NBAA convention, the Model 510 first flew on April 23, 2005. It received its FAA type certification on September 8, 2006, and was first delivered on November 22. Production ended in 2017 after 479 aircraft were built. The 8,645 lb (3,921 kg) maximum take-off weight jet is powered by two Pratt & Whitney Canada PW615F 1,460 lbf (6.5 kN) turbofans, can reach 340 kn (630 km/h), and has a range of 1,167 nmi (2,161 km).
Launched at the 2002 NBAA convention, the $2.4 million Mustang first flew on April 23, 2005. The airplane received full type certification from the Federal Aviation Administration on September 8, 2006. Cessna received FAA certification to fly into "known icing conditions" on November 9, 2006. Cessna delivered the first production LJ on November 22, 2006, the same day the FAA awarded Cessna with the necessary certification. Dave and Dawn Goode of GOODE Ski Technologies received the first retail delivered Cessna Mustang on April 23, 2007. In 2010, Cessna launched an enhanced edition of the aircraft called the High Sierra, which features higher-quality cabin furnishings and enhanced avionics, including synthetic vision. In 2015, its unit cost was US$3.35 million.
Design

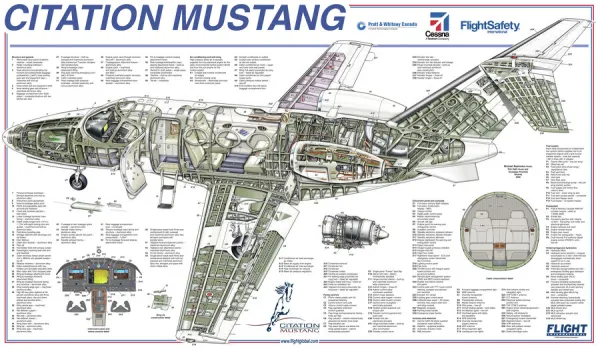

The Mustang is a low-wing, cantilever monoplane with a swept wing, T-tail, and retractable tricycle gear. One main door is located in the forward left section of the aircraft, with an additional emergency exit on the center right section of the fuselage. In its standard configuration, the Mustang has four passenger seats in the aft cabin, a toilet, and seating for two in the cockpit. The airframe is primarily of aluminum alloy construction and has a three-spar wing. Power is provided by two Pratt & Whitney Canada PW615F turbofans mounted in pods on the aft fuselage. The aircraft was built at the Cessna production facility in Independence, Kansas. Like many other light jets, the Mustang is approved for single-pilot operation.
0
KmCeiling
0
KmCombat RANGE
0
Km/hAircraft Speed
0
Max Crew

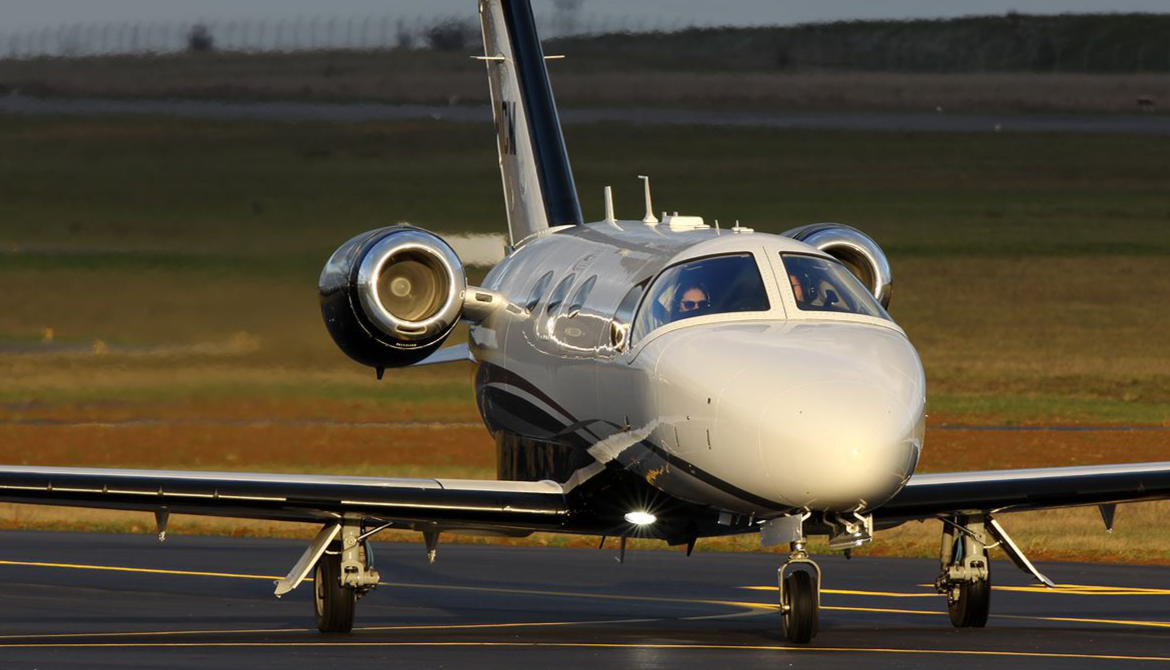

Photo Gallery
Cessna Aircraft Company
Cessna Citation Mustang
Cessna Aircraft Company
Cessna Citation Mustang
General Info
-
-
- Crew: one or two pilots
- Capacity: 4 to 5 passengers and 3130 lb (1420 kg) useful load
- Length: 40 ft 7 in (12.37 m)
- Wingspan: 43 ft 2 in (13.16 m)
- Height: 13 ft 5 in (4.09 m)
-
Powerplant
-
- Empty weight: 5,600 lb (2,540 kg)
- Max takeoff weight: 8,645 lb (3,930 kg)
- Powerplant: 2 × Pratt & Whitney Canada PW615F turbofans, 1,460 lbf (6.5 kN) thrust each
-
Performance
- Maximum speed: 483 mph (777 km/h
- Cruise speed: 390 mph (630 km/h
- Range: 1,343 mi (2,161 km, 1,167 nmi) (at max. takeoff weight)
- Service ceiling: 41,000 ft (12,500 m)
- Rate of climb: 3,010 ft/min (15.3 m/s)
- Thrust/weight: 0.337 (at max. takeoff weight)
- Takeoff distance: 3,110 ft (948 m)
- Landing distance: 2,380 ft (729 m)
