Costruzioni Aeronautiche
TECNAM S.p.A
Tecnam P2012 Traveller, Introduction date 22 Feb 2020
First flight 21 July 2016
Costruzioni Tecnam
P2012 Traveller
 |
|
| General information | |
|---|---|
| Role | Utility aircraft |
| National origin | Italy |
| Manufacturer | Tecnam |
| Designer | Luigi Pascale |
| Primary users | Cape Air |
| Number built | 120 |
| History | |
| Introduction date | 22 February 2020 |
| First flight | 21 July 2016 |
| In service | 2020–present |
.
History Costruzioni Aeronautiche
TECNAM S.p.A
Tecnam P2012 Traveller,
Introduction date 22 February 2020
First flight 21 July 2016
The Tecnam P2012 Traveller is a twin-engine, high-wing utility aircraft designed and manufactured by the Italian company Costruzioni Aeronautiche Tecnam, based in Capua, Italy, near Naples. Certified under EASA CS-23 and FAA FAR Part 2, the aircraft is configured to carry up to nine passengers and one or two pilots, and is designed for commuter, charter, air taxi, cargo, medevac, and surveillance operations
Design and development
_(10-20-2022).jpg)
In 2009, Cape Air, a Massachusetts-based commuter airline operating in the Caribbean and New England, was looking for a successor for its fleet of 83 Cessna 402s. After being rebuffed by aircraft manufacturers Cessna and Piper, Cape Air approached Italian manufacturer Tecnam, specialised in trainers and private aircraft to develop a modern twin-engine commuter tailored to its operational needs. The P2012 is Tecnam's most complex and important programme, "the first time we've developed an aircraft from the operator's point of view".
Design and development
Background
The Traveller is a twin piston-engined aircraft, powered by a pair of Lycoming TEO540C1As, each producing 375 hp (280 kW), which give the type a maximum permissible speed (VNE) of 226 kn (419 km/h).In June 2023 the option of fitting twin 375 hp (280 kW) Continental GTSIO-520-S engines was added by Tecnam with a maximum permissible speed (VNE) of 228 kn (422 km/h). While the Lycoming engines use full authority digital engine control (FADEC) and a four-blade propeller, the Continental variant offers a more traditional throttle-propeller-mixture setup with three-blade propellers. The design complies with FAR Part 23 and EASA CS-23 regulations.
0
KmCeiling
0
KmCombat RANGE
0
Km/hAircraft Speed
0
Max Crew

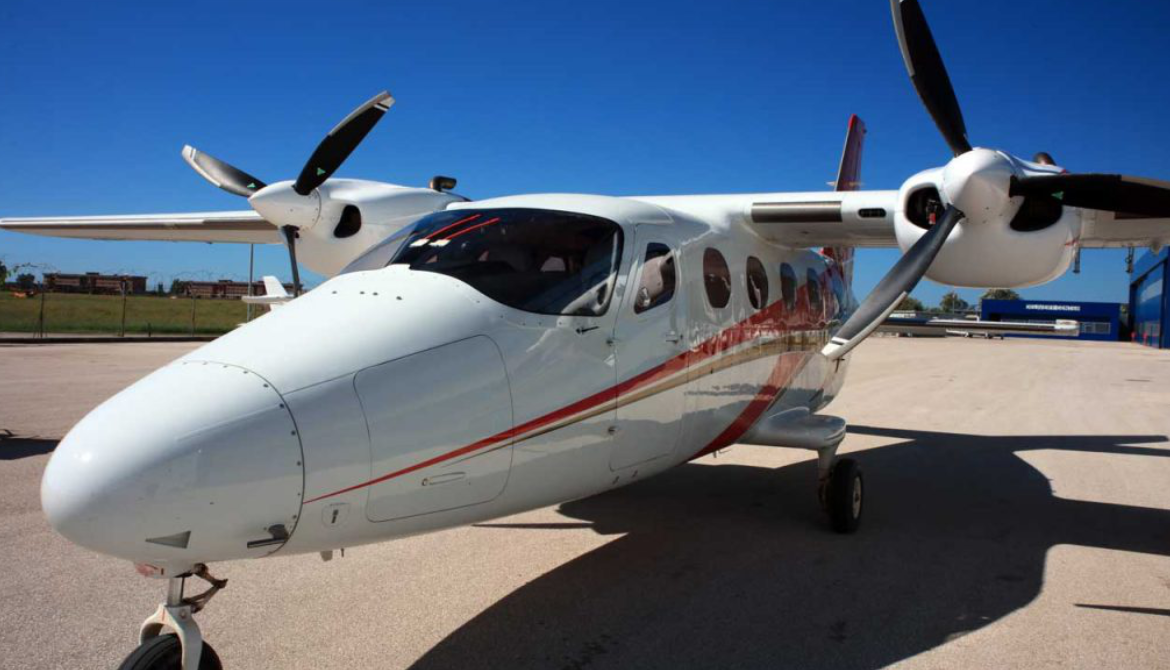

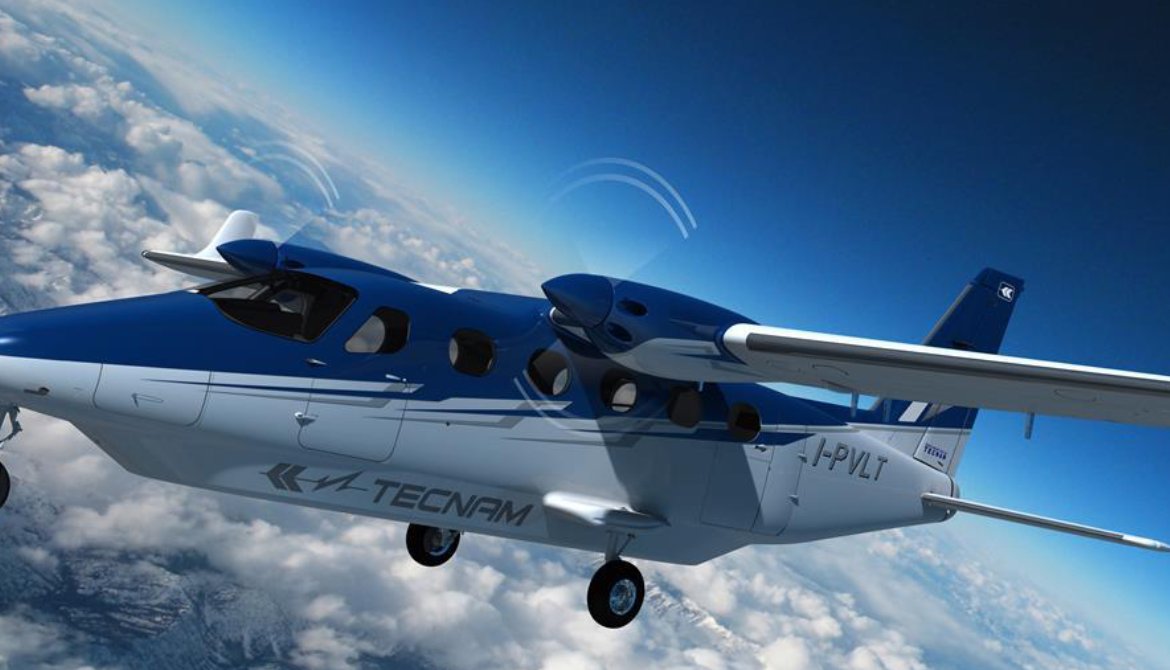

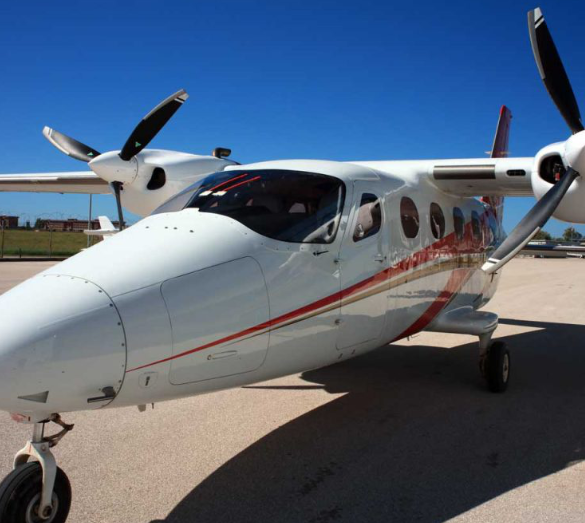

Photo Gallery
Costruzioni Aeronautiche
TECNAM S.p.A
Tecnam P2012 Traveller,
Introduction date 22 February 2020
First flight 21 July 2016
Costruzioni Aeronautiche
TECNAM S.p.A
Tecnam P2012 Traveller,
Introduction date 22 February 2020
First flight 21 July 2016
General Info
-
-
-
- Crew: 1 or 2
- Capacity: 9 passenger seats / 1,414 kg (3,117 lb) useful load including fuel

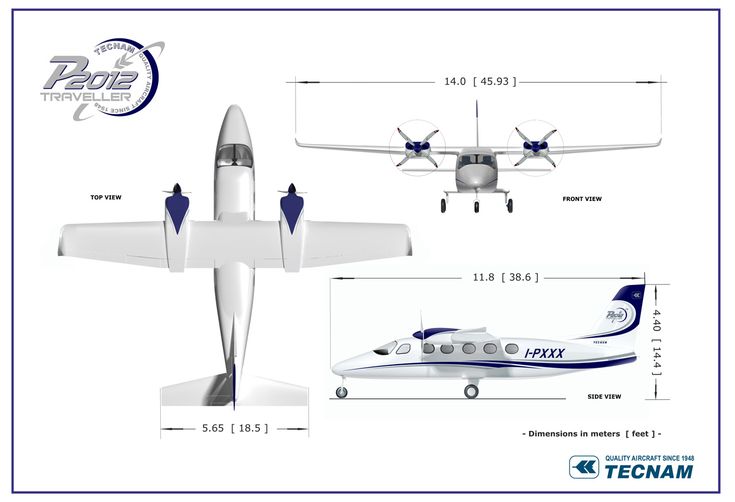

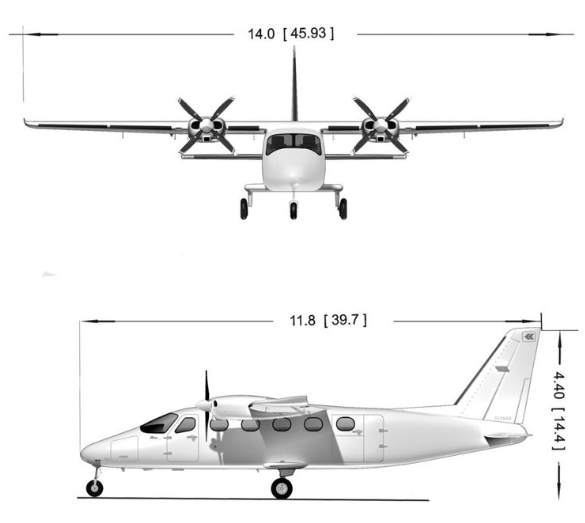

- Length: 11.8 m (38 ft 9 in)
- Wingspan: 14 m (45 ft 11 in) ; 16.6 m (54 ft) on STOL variant
- Height: 4.4 m (14 ft 5 in)
- Wing area: 25.4 m2 (273 sq ft)
-
-
Powerplant
-
-
- Max takeoff weight: 3,680 kg )
- Fuel capacity: 880 Fuel
- Powerplant: 2 × Lycoming TEO-540C1A 6-cylinder air-cooled horizontally-opposed turbocharged piston engines, 280 kW (375 hp) each
-
Performance
-
- Maximum speed: 359 km/h (223 mph, 194 kn) at 10,000 ft (3,000 m)
- Cruise speed: 319 km/h (198 mph, 172 kn) at 75% power at 10,000 ft (3,000 m)
- Stall speed: 120 km/h (75 mph, 65 kn) full flaps; 122 km/h (76 mph; 66 kn) full flaps on STOL variant
- Never exceed speed: 419 km/h (260 mph, 226 kn)
- Range: 2,500 km (1,600 mi, 1,300 nmi)
- Service ceiling: 5,900 m (19,500 ft) restricted to four passengers over 4,000 m (13,000 ft)
Links to Youtube & Others
Standard passenger and utility version. It can be configured for commuter, air taxi, cargo, medevac, and skydive operations. It is available with either Lycoming TEO-540-C1A engines with FADEC and four-blade propellers, or Continental GTSIO-520-S engines with a traditional control setup and three-blade propellers
Costruzioni Tecnam
P2012 Traveller
The Tecnam P2012 Traveller is a twin-engine, high-wing utility aircraft
Youtube Link
It`s not just an aircraft. It`s a multimission platform designed to satisfy operators and their customers. Now every mission is possible with the lineup of P2012 Series. Enjoy our brand new Showroom Video today
Read more in Costruzioni Aeronautiche TECNAM S.p.A., commonly known as Tecnam.
.svg.png)
