Voronezh Aircraft Production Association
Ilyushin Il-112 Transport
VASO in English, ВАСО
Ilyushin Il-112
.jpg) |
|

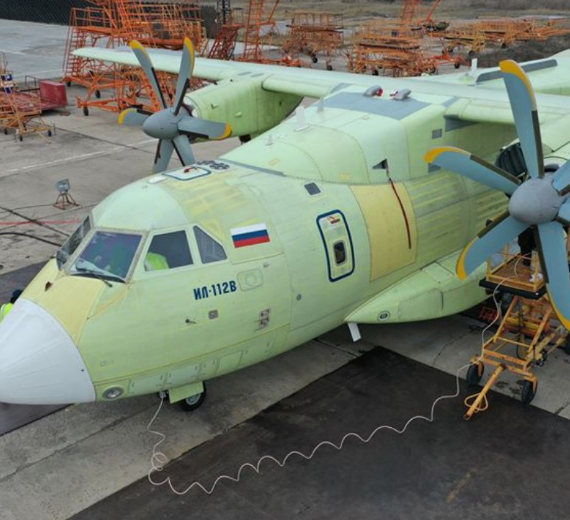

| An Il-112 during flight testing in March 2021 | |
| Role | Light military transport |
|---|---|
| National origin | Russia |
| Design group | Ilyushin |
| Built by | Voronezh Aircraft Production Association |
| First flight | 30 March 2019 |
| Introduction | 2023 (planned) |
| Status | In development |
| Primary user | Russian Aerospace Forces |
| Number built | 2 Il-112V prototypes, only 1 flew |
.
History Voronezh Aircraft Production Association
Ilyushin Il-112 Transport
The Ilyushin Il-112/Il-212 (Russian: Ил-112) is a high-wing light military transport aircraft being developed by Ilyushin Aviation Complex (JSC IL) for air landing and airdrop of military air cargoes, equipment and personnel. The aircraft is manufactured by Voronezh Aircraft Production Association in Voronezh.[unreliable source? In October 2023, according to a source inside the Russian industrial-military complex, it was reported that the Il-112 project will be redesigned and renamed into the Ilyushin Il-212, the main difference being that now the aircraft will be equipped with turbofan instead of turboprop
Development
Work began on the Il-112 project in 1994, for both civil and military roles, including as a 40-seat airliner and cargo versions with a rear loading ramp to replace the Antonov An-26. The project was announced at the 1995 Paris Air Show where a model was exhibited. The military transport version, the Il-112V, was entered into a Russian Ministry of Defence competition to replace the Antonov An-26, the Yakovlev Yak-40 and the Let L-410 in Russian service, being evaluated against designs from Sukhoi (the Su-80) and Mikoyan (the MiG-110). The Il-112 was ordered into full development on 8 April 2003, with the type planned to enter service in 2008. It was required to carry a cargo of 6,000 kg (13,000 lb) over a distance of 3,000 km (1,600 nmi; 1,900 mi). A market of up to 120 aircraft for the Russian military and 120 civil sales was estimated in 2004
Variants
- Il-112V
- Military variant (cancelled)
- Il-112T
- Civil variant (cancelled)
- Il-212
- New variant of the aircraft with PD-8 jet engines, an updated landing gear, and new fuel and hydraulic systems
0
KmCeiling
0
KmCombat RANGE
0
Km/hAircraft Speed
0
Max Crew
Photo Gallery
Voronezh Aircraft Production Association
Ilyushin Il-112 Transport
Voronezh Aircraft Production Association
Ilyushin Il-112 Transport
General Info
-
-
-
- Capacity: 5,000 kg (11,000 lb); 44 passengers
- Length: 24.15 m (79 ft 3 in)
- Wingspan: 27.6 m (90 ft 7 in)
- Height: 8.89 m (29 ft 2 in)
- Wing area: 65 m2 (700 sq ft)
-
-
Powerplant
-
-
- Fuel capacity: 7,200 L (1,600 imp gal; 1,900 US gal)
- Powerplant: 2 × Klimov TV7-117ST turboprop, 2,610 kW (3,500 hp) each
- Propellers: 6-bladed constant-speed reversible pitch propellers
-
-
Performance
-
- Cruise speed: 450 km/h (280 mph, 240 kn) to 500 km/h
- Range: 2,400 km (1,500 mi, 1,300 nmi) with 3,500 kg (7,700 lb) load; 1,700 km (1,100 mi; 920 nmi) with max load
- Service ceiling: 7,600 m (24,900 ft)
.
Links to Youtube & Others
Russian unmanned air system developer Kronstadt Group partnered with Ilyushin to develop an autonomous aircraft demonstrator based on the Il-112. Emerged after the bankruptcy of the Transas Group, St. Petersburg-based Kronstadt is developing the medium-sized Orion UAV, unveiled at the July 2017 MAKS air show.
IIyushin Il-112 Transport
The aircraft was designed to operate in adverse weather conditions and is expected to meet all current ICAO noise and emissions requirements.
Youtube Link
The Il-112V is equipped with the avionics combining the entire equipment complexes and systems into an integrated complex – the onboard equipment integrated complex.
Read more in Voronezh Aircraft Production Association IIyushin Il-112 Transport
.
