Ilyushin Il-62 Classic
.jpg) |
|
| A Russian Air Force Ilyushin Il-62M | |
| Role | Narrow-body jet airliner |
|---|---|
| Design group | Ilyushin |
| Built by | KAPO |
| First flight | 3 January 1963 |
| Introduction | Il-62 – 15 September 1967Il-62M – 9 March 1974 |
| Status | In limited service |
| Primary users | Air Koryo Aeroflot (former) Russian VIP transport |
| Produced | 1963–1995 |
| Number built | 292 (5 prototypes; 94 Il-62; 193 Il-62M) |
.
History Voronezh Aircraft Production Association
Ilyushin Il-62 Classic
The Ilyushin Il-62 (Russian: Илью́шин Ил-62; NATO reporting name: Classic) is a Soviet long-range narrow-body jetliner conceived in 1960 by Ilyushin. As successor to the popular turboprop Il-18 and with capacity for almost 200 passengers and crew, the Il-62 was the world's largest jet airliner when first flown in 1963. The seventh quad engined, long-range jet airliner to fly (the predecessors being the De Havilland Comet (1949), Avro Jetliner (1949), Boeing 707 (1954), Douglas DC-8 (1958), Vickers VC10 (1962), and experimental Tupolev Tu-110 (1957)), it was the first such type to be operated by the Soviet Union and a number of allied nations.
Design

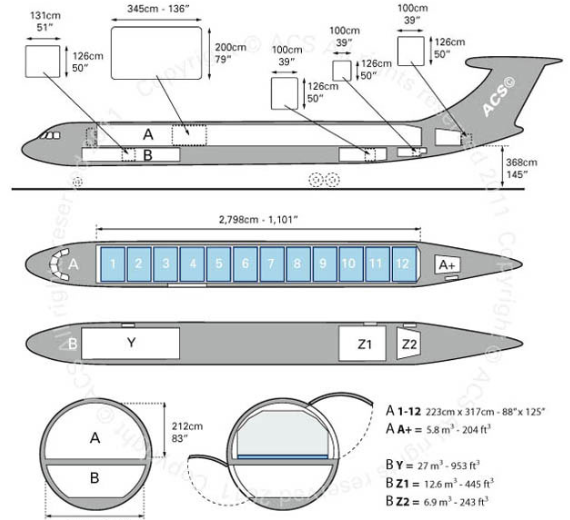

The Il-62 is a conventional all-metal low-wing monoplane of riveted sectional semi-monocoque construction to fail-safe design principles (a structure designed so that failure of one major member does not cause immediate failure of the whole). Its service life was initially set at 30,000 flight hours and subject to extensions and curtailments according to the quality of service procedures, inspection and manufacturer's bulletins. The aircraft features pressurised cabin and freight holds (with fuselage dimensions of 3.8 m width x 4.1 m height), duplex all-mechanical flight controls, though with twin electric motors for tailplane incidence control; hydraulic nosewheel steering, landing gear and tail strut actuation, and wheel brakes. The Il-62M has spoilers and lift dumpers which extend automatically upon landing and are hydraulically operated. Control surfaces include a variable-incidence tailplane with dynamically and weight-compensated elevators with trim tabs, triple-section tabbed ailerons (outermost for low speed and innermost for high speed) which are interlinked with a torsion bar, spoilerons (Il-62M), spoilers and lift dumpers, and pneumatically actuated thrust reversers on the two outboard engines (the reversers are flight-rated on the Il-62M).
0
KmCeiling
0
NmiFlight RANGE
0
Km/hAircraft Speed
0
Max Crew

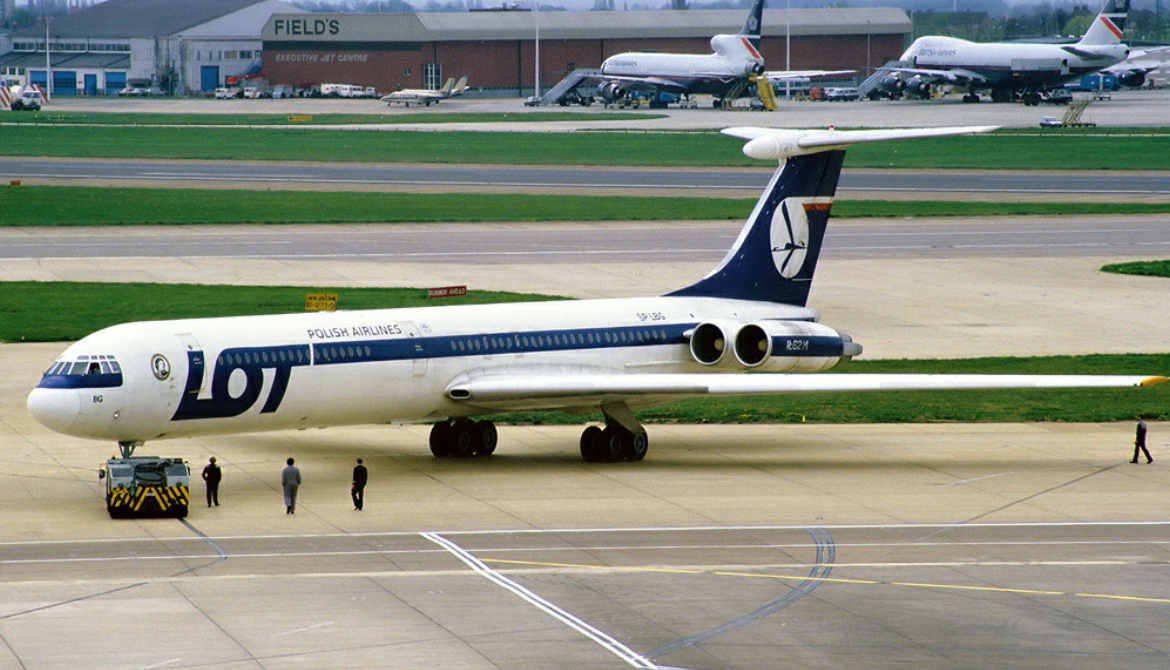

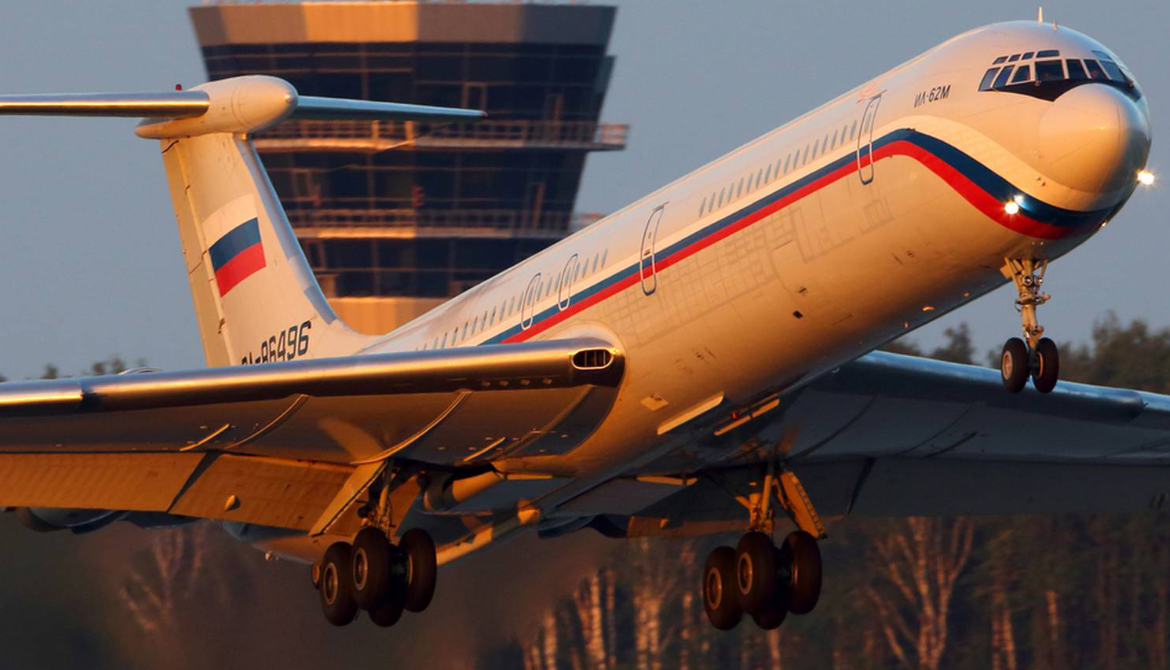

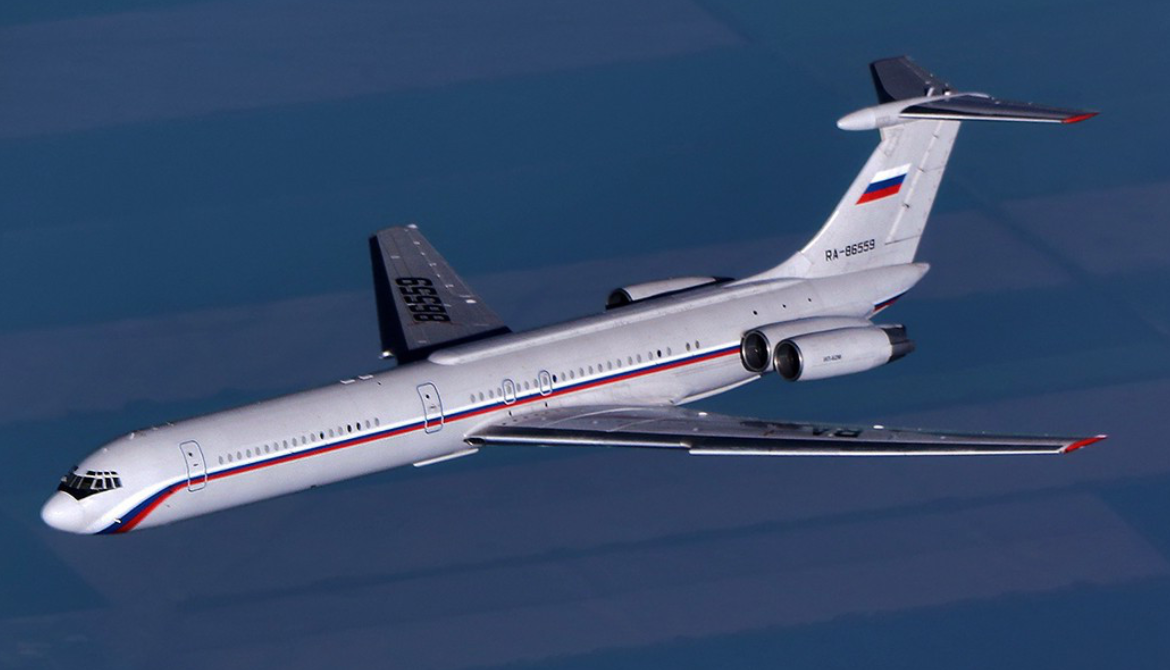

Photo Gallery
PJSC Ilyushin Aviation Complex
Ilyushin Il-62 Classic
Voronezh Aircraft Production Association
Ilyushin Il-62 Classic

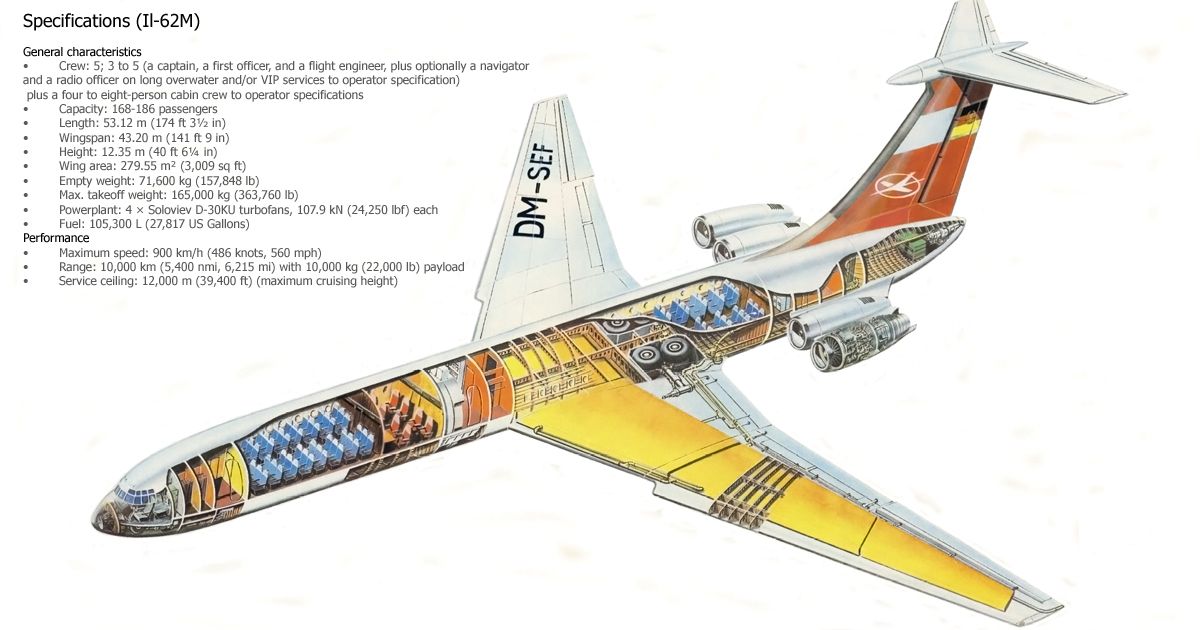

General Info
-
-
-
- Crew: 5; 3 to 5 (a captain, a first officer, and a flight engineer, plus optionally a navigator and a radio officer on long overwater and/or VIP services to operator specification) plus a four to eight-person cabin crew to operator specifications
- Capacity: 168–186 passengers
- Length: 53.12 m (174 ft 3 in)
- Wingspan: 43.20 m (141 ft 9 in)
- Height: 12.35 m (40 ft 6 in)
-
-
Powerplant
-
-
- Fuel capacity: 105,300 L (27,800 US gal; 23,200 imp gal) 84,240 kg
- Powerplant: 4 × Soloviev D-30KU turbofan engines, 107.9 kN (24,300 lbf) thrust each
-
-
Performance
-
- Cruise speed: 900 km/h
- Range: 10,000 km (6,200 mi, 5,400 nmi) with 10,000 kg payload
- Service ceiling: 12,000 m (39,000 ft) maximum cruising height
.
Links to Youtube & Others
As the first long-range jet airliner to be put into service by a number of nations, some retired Il-62s have been converted into museums and other uses in countries such as the Czech Republic, Germany, Austria, Cuba and China.
IIyushin Il-62 Classic
A sideline to the Il-62 story concerns alleged industrial espionage. As the Il-62 was developed at about the same time as the VC10.
Youtube Link
The Il-62 is a conventional all-metal low-wing monoplane of riveted sectional semi-monocoque construction to fail-safe design principles.
