The Koolhoven F.K.51 was the winning design in a 1935 Dutch government contest for a new trainer. Designed by Frederick Koolhoven the prototype biplane trainer first flew on 25 May 1935. The aircraft was an equal-span biplane designed to use a variety of engines of 186 to 373 kW (249 to 500 hp). It was a two-seater and had a fixed tailwheel undercarriage. The Royal Netherlands Air Force (LVA) ordered 25 aircraft in 1936 and 1937, powered by a 201 kW (270 hp) Armstrong Siddeley Cheetah V radial engine. A further 29 aircraft were later ordered with 261 kW (350 hp) Armstrong Siddeley Cheetah IX engine. The Dutch Naval Aviation Service ordered 29 aircraft each powered by a 335 kW (449 hp) Pratt & Whitney radials. The Royal Dutch East Indies Army bought 38 aircraft between 1936 and 1938 each powered by a 313 kW (420 hp) Wright Whirlwind

While the majority of F.K.51s were employed as elementary trainers within the Netherlands or in reconnaissance roles by the Royal Netherlands Air Force in the Dutch East Indies, twenty-eight were clandestinely sold to the Republican government during the Spanish Civil War, all despite a Dutch embargo on the sale of arms to either side of that conflict. Some of those arriving in Spain were used as light bombers by the Republicans in the Cantabrian region of Spain

The F.K.51s were in active use in Royal Dutch Flight Schools during 1939–1940 in the training of young Dutch pilots.

Some LVA F.K.51s were briefly used for reconnaissance duties following the German invasion of the Netherlands in May 1940, with several F.K.51s being destroyed on the ground by attacking Luftwaffe aircraft The Dutch Naval Aviation Service's F.K.51s were used to carry neutrality patrols from January 1940, with most being damaged or destroyed during an attack on De Kooy Airfield on 10 May

In December 1941, the Royal Dutch East Indies Army had 27 F.K.51s available for service, and on 5 December 1941, its flying schools were shut down, allowing the F.K.51s to form two reconnaissance squadrons based on Java

Operators

Netherlands

Spain

Spanish Republican Air Force

Spain

Spanish Air Force

Fokker Royal Dutch Aircraft Factory

Koolhoven Company
Koolhoven F.K.51

General Info

Crew: 2 (one observer or student, one pilot or instructor)
Length: 7.85 m (25 ft 9 in)
Wingspan: 9 m (29 ft 6 in)
Height: 2.8 m (9 ft 2 in)
Wing area: 27 m² (290 sq ft)

Powerplant

Empty weight: 990 kg (2,183 lb) Gross weight: 1,450 kg (3,197 lb) Max takeoff weight: 1,600 kg Fuel capacity: 220 L (58 US gal; 48 imp gal) Powerplant: 1 × Armstrong Siddeley Cheetah IX 7-cylinder, air-cooled radial piston engine, 261 kW (350 hp)

Performance

Maximum speed: 253 km/h (157 mph, 137 kn) at 2,200 m (7,200 ft)

232 km/h at sea level

Cruise speed: 229 km/h at 2,200

206 km/h at sea level

Landing speed: 84 km/h
Range: 775 km (482 mi, 418 nmi)
Service ceiling: 6,300 m

Armament

Guns:

#1 to #10: no armament
#11 to #25: one or two 7.7 mm (0.303 in) Lewis gun(s) in the wing
#400 to #428: two 7.7 or 7.9 mm (0.303 or 0.311 in) machine guns, 1 in the wing and 1 for the observer.

Special Links Fokker Royal Dutch aircraft factory

Links to Youtube & Others

De Koolhoven F.K. 51 was een Nederlands vliegtuig gebouwd bij de vliegtuigenfabriek Koolhoven. Het model werd op eigen initiatief van Koolhoven gebouwd in de hoop deze te kunnen slijten aan de Luchtvaartafdeeling (LVA), de voorloper van de Koninklijke Luchtmacht.

Koolhoven Company Koolhoven F.K.51

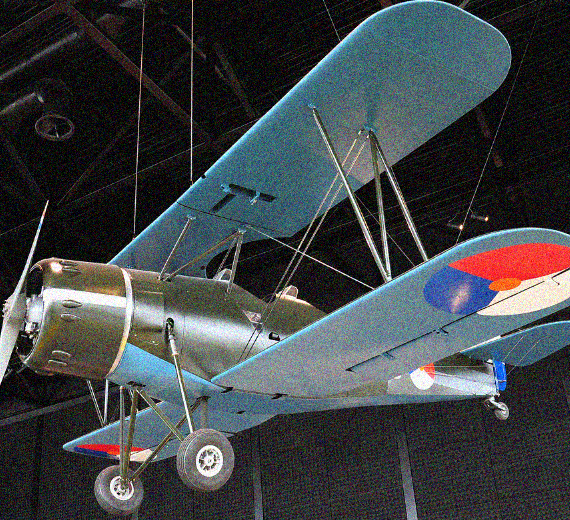

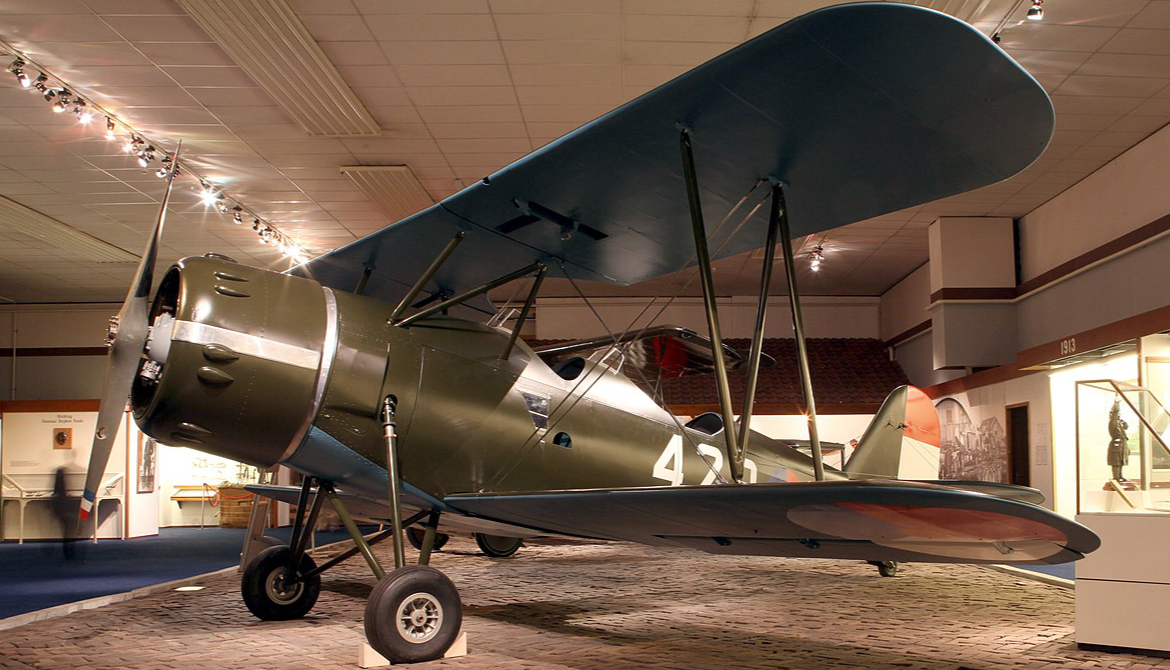

The production aircraft L-11 is preserved at the Dutch National Military Museum at the former Soesterberg Air Base.

Youtube Link

The production aircraft L-11 is preserved at the Dutch National Military Museum at the former Soesterberg Air Base.
