De Havilland Aircraft of Canada Limited (DHC)
de Havilland Canada
DHC-5 Buffalo
Manufactured 1965–1972, 1974–1986
De Havilland Aircraft DHC-5 Buffalo
 |
|
| General information | |
|---|---|
| Type | Utility aircraft |
| Manufacturer | de Havilland Canada |
| Status | In limited use |
| Primary user | Royal Canadian Air Force |
| Number built | 122 |
| History | |
| Manufactured | 1965–1972, 1974–1986 |
| Introduction date | 1965 |
| First flight | 9 April 1964 |
| Developed from | De Havilland Canada DHC-4 Caribou |
.
History De Havilland Aircraft of Canada Limited (DHC)
de Havilland Canada
DHC-5 Buffalo
Manufactured 1965–1972, 1974–1986
The de Havilland Canada DHC-5 Buffalo is a short takeoff and landing (STOL) utility transport turboprop aircraft developed from the earlier piston-powered DHC-4 Caribou. The aircraft has extraordinary STOL performance and is able to take off in distances much shorter than even most light aircraft can manage.
Development
The Buffalo arose from a 1962 United States Army requirement for a STOL transport capable of carrying the same payload as the CH-47A Chinook helicopter. De Havilland Canada based its design to meet the requirement on an enlarged version of its DHC-4 Caribou, already in large-scale service with the United States Army, to be powered by General Electric T64 turboprops rather than the Pratt & Whitney R-2000 piston engines of the Caribou. (It had already flown a T64-powered Caribou on 22 September 1961)
Design
Operational history
In late 1965, one of the prototype DHC-5s operated by the U.S. Army was deployed to Bien Hoa Air Base in South Vietnam for a three-month evaluation period, assigned to the 2nd Flight Platoon of the 92nd Aviation Company.
The Royal Canadian Air Force first acquired 15 DHC-5A designated as CC-115 for tactical transports. These were initially operated at CFB St Hubert, QC by No. 429 Squadron in a tactical aviation role as part of Mobile Command. In 1970, the Buffalo aircraft were transferred to a transport and rescue role with No. 442 Squadron, No. 413 Squadron and No. 424 Squadron as part of Transport Command. No. 426 Squadron also flew the aircraft for training. Some were leased back or loaned back to the factory for trials and eventually returned to military service.
0
KmCeiling
0
KmCombat RANGE
0
Km/hAircraft Speed
0
Max Crew

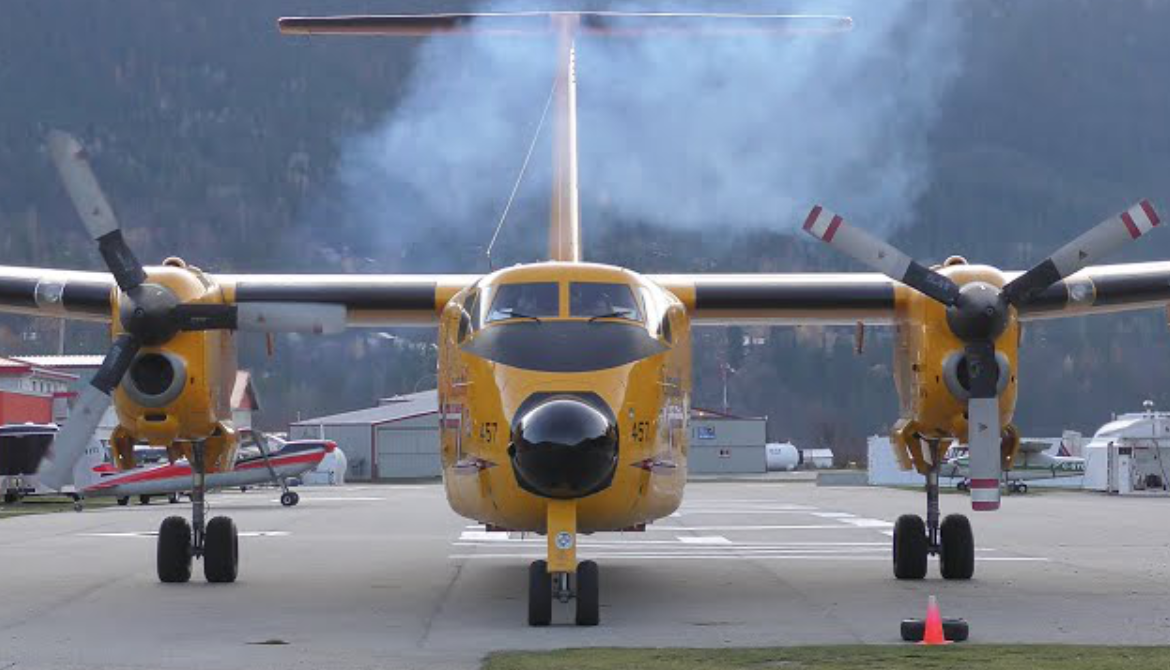

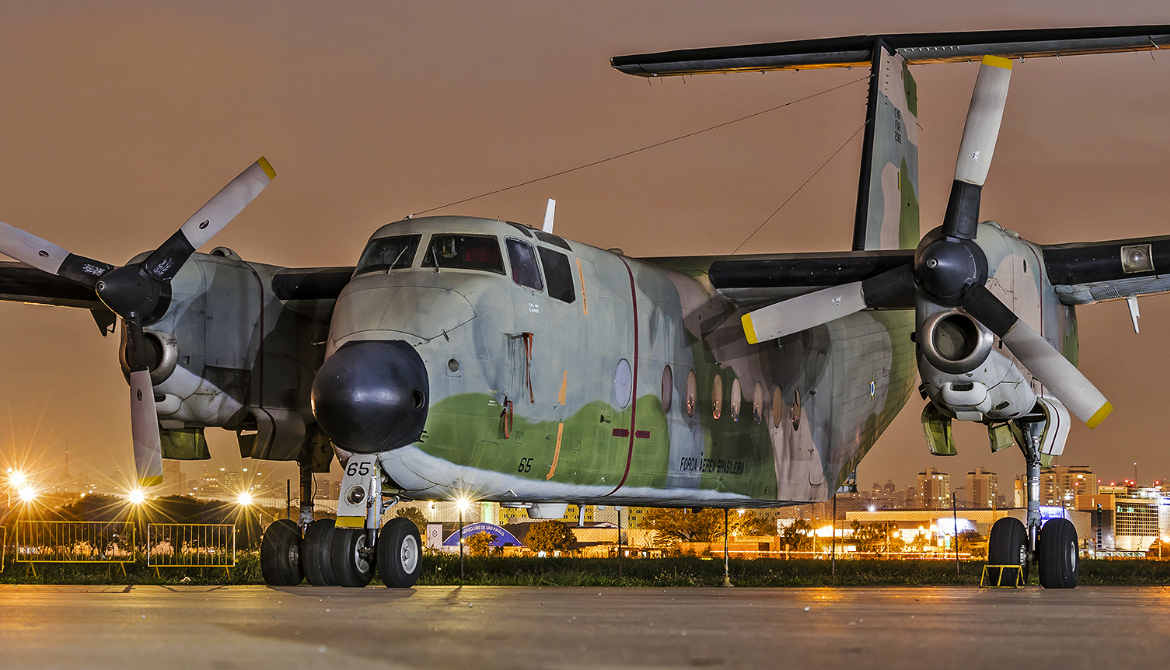

Photo Gallery
De Havilland Aircraft of Canada Limited (DHC)
de Havilland Canada DHC-5 Buffalo
Manufactured 1965–1972, 1974–1986
Bombardier Challenger 600 series is a family of business jets after a Bill Lear concept.
Manufactured 1980–present
General Info
-
-
-
Crew: 3 (pilot, co-pilot and crew chief)- Capacity: 41 troops or 24 stretchers or 18,000 lb (8,200 kg) payload
- Length: 79 ft 0 in (24.08 m)
- Wingspan: 96 ft 0 in (29.26 m)
- Height: 28 ft 8 in (8.74 m)
- Wing area: 945 sq ft (87.8 m2)
-
-
Powerplant
-
-
-
- Empty weight: 25,160 lb (11,412 kg)
- Max takeoff weight: 49,200 lb (22,317 kg)
- Fuel capacity: 1,755 imp gal (2,108 US gal; 7,980 L)
- Powerplant: 2 × General Electric CT64-820-4 turboprop engines, 3,133 shp (2,336 kW) each
-
-
Performance
- Cruise speed: 227 kn (261 mph, 420 km/h) maximum at 10,000 ft (3,000 m)
- Stall speed: 73 kn (84 mph, 135 km/h) 40 degree flaps at (21,273 kg)
- Range: 1,100 km) at 10,000 ft (3,048 m) with maximum payload
- Ferry range: (2,040 mi, 3,280 km) zero payload
- Service ceiling: (9,400 m)
- g limits: 2.5g (manoeuvring limit load)
Related development
-
- de Havilland Canada DHC-4 Caribou
Aircraft of comparable role, configuration, and era
.
